Item | Parameter | Remarks |
Vehicle Model | KLF5180ZYSE6 | 4th Gen Compactor |
Wheelbase (mm) | 3950 | |
Tire | 275 Tubeless / 10.00 Steel | |
Gearbox | Fast 8-speed Gearbox | |
Engine Model | YCS04200-68 (Yuchai 200) | China VI, Diesel |
Engine Power (kW) | 147 / 143 / 169 | |
Overall Dimensions L×W×H (mm) | 8040/8005/7855/7755*2500/2550*3300/3400 | 4 rear structures, length varies |
Gross Weight (kg) | 18000 | |
Rated Load (kg) | 8450, 8385, 8070, 8005, 7516, 7581 | |
Curb Weight (kg) | 9420, 9800, 10289 | As per actual weight |
Effective Volume (m³) | 12 | |
Operation | Electric / Manual / Remote | 3 modes standard |
Loading Cycle Time | 12–25S | |
Unloading Time | ≤25S |

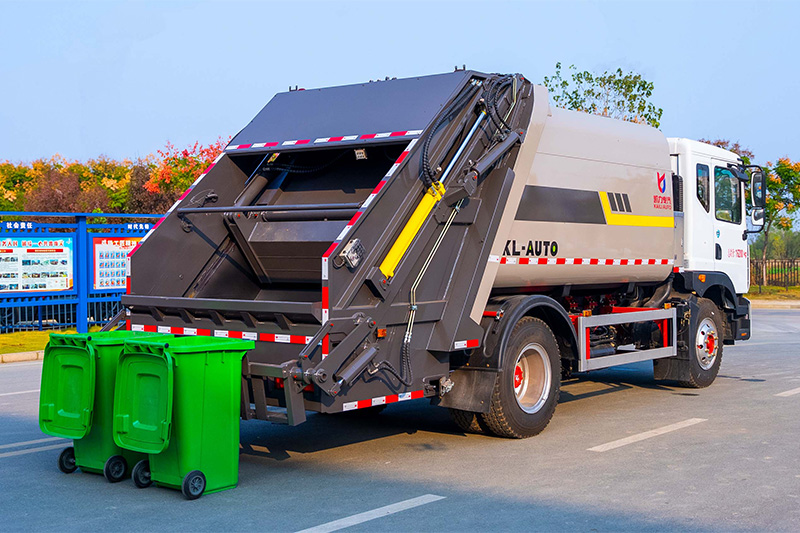

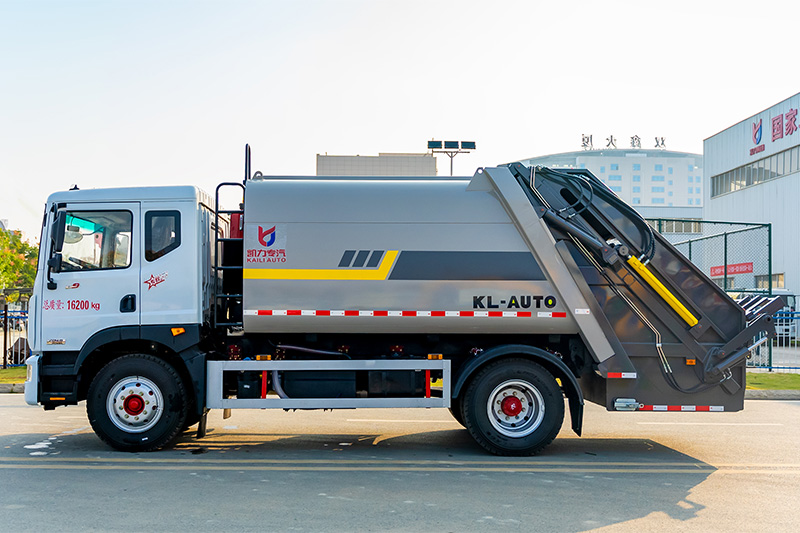

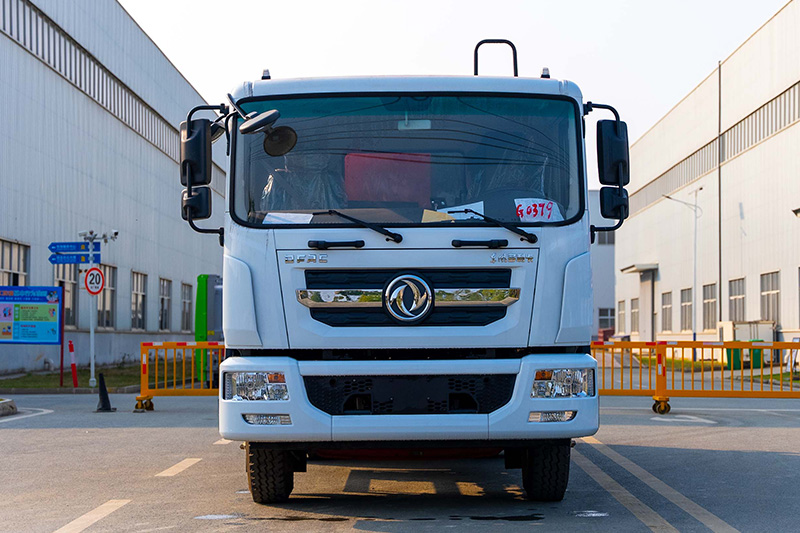

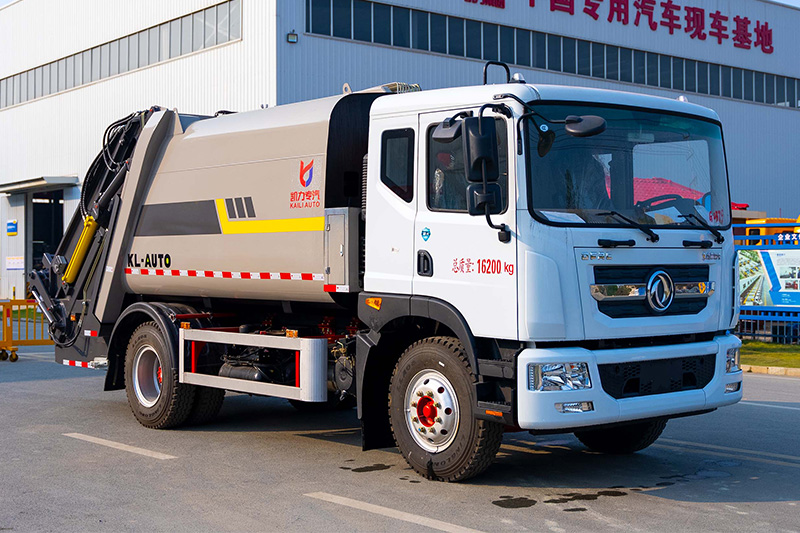

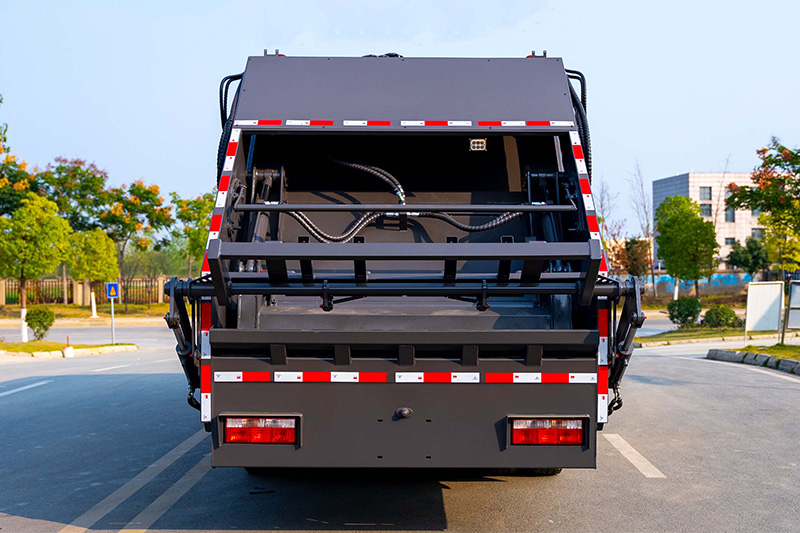

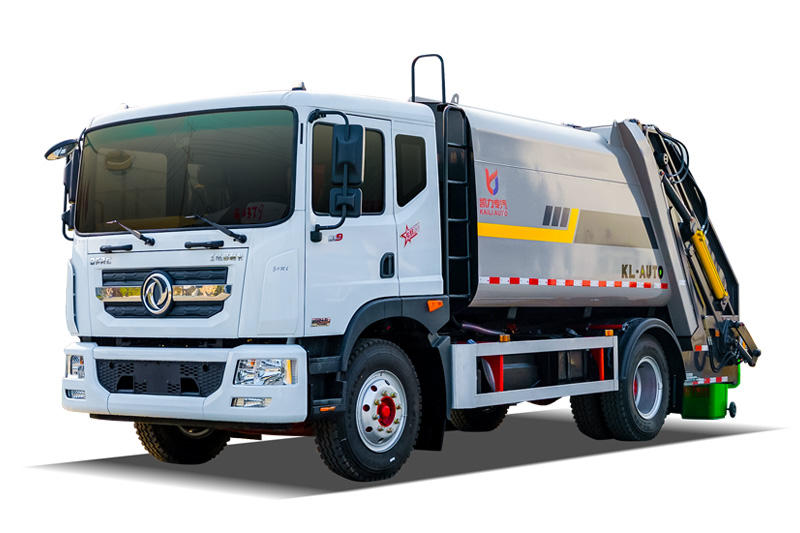

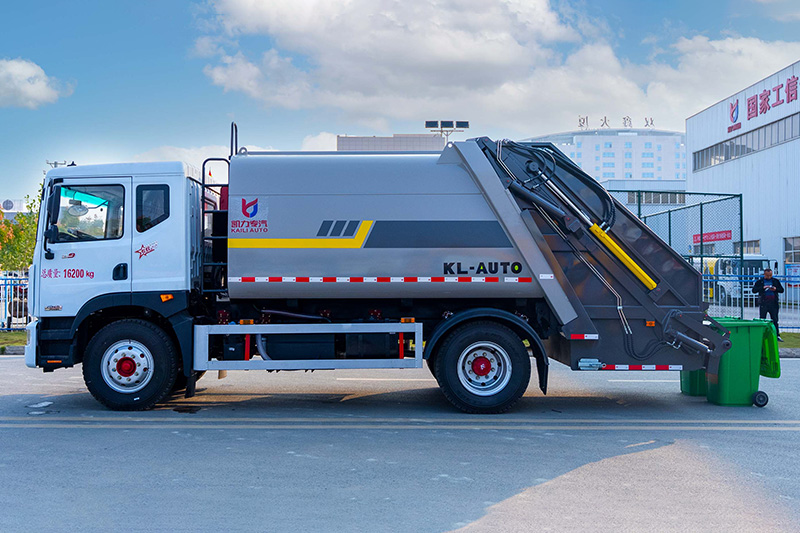

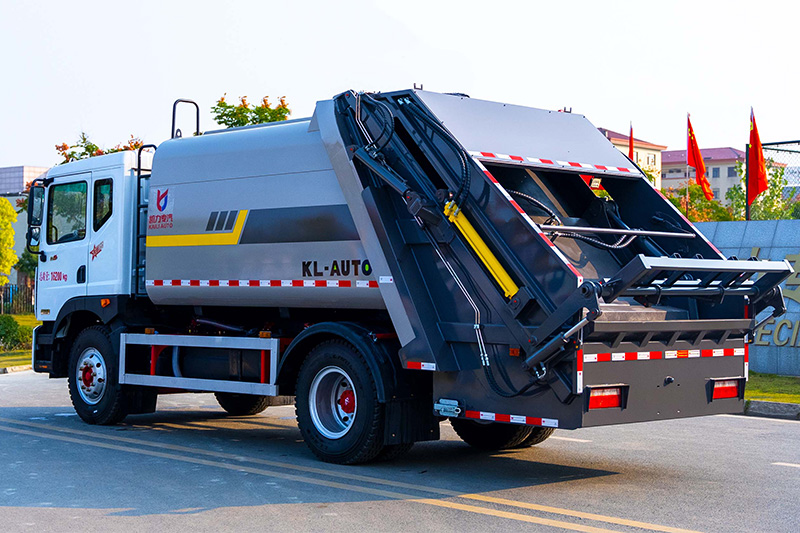

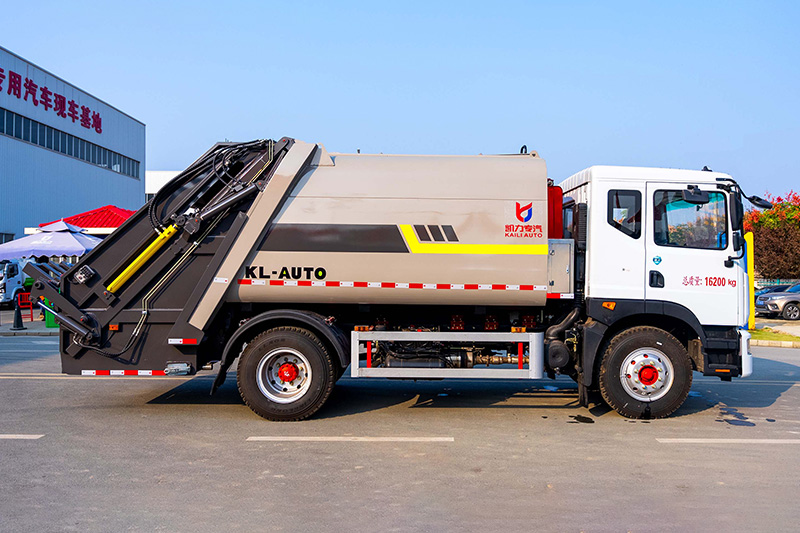

2023 Dongfeng D9 Compactor Truck, 3,950 mm wheelbase, 12 cubic meters
Project Parameters Remarks Vehicle Model KLF5180ZYSE6 4th Generation New Compressed Wheelbase (mm) 3950 Tire Specifications 275 Tubeless Tires / 10.00 Steel-belted Tires Transmission Fast 8-speed Transmission Engine Model YCS04200-68 (Yuchai 200) D4.0NS6B195 (Cummins 195) B6.2NS6B230 (Cummins 230)
