Item | Parameter | Remarks |
Vehicle Model | KLF5160ZYSD6 | 4th Generation New Compression Type |
Wheelbase (mm) | 3950 | |
Tire Specification | 9.00 Steel Tire / 275 Tubeless Tire | |
Gearbox | Fast 8-speed Gearbox | |
Engine Model | DDi47E210-60 (Longqing 210 HP) D4.0NS6B195 (Cummins 195 HP) | China VI Emission, Diesel Engine |
Engine Power (kW) | 154/143 | |
Overall Dimensions 【L×W×H (mm)】 | 8210,8175,8025,7925,8275,8160,8045,7945* 2500,2550*3200,3250,3300 | Four rear structures; length varies with structure |
Max. Gross Weight (kg) | 16200 | |
Rated Load (kg) | 6805,6870,6355,6420 | |
Curb Weight (kg) | 9200,9650 | Issued based on actual vehicle weight |
Effective Box Volume (m³) | 12.5 | |
Operation Mode | Electric / Manual / Remote Control | Three modes as standard |
One Loading Cycle Time | 12–25S | |
Unloading Time | ≤25S |

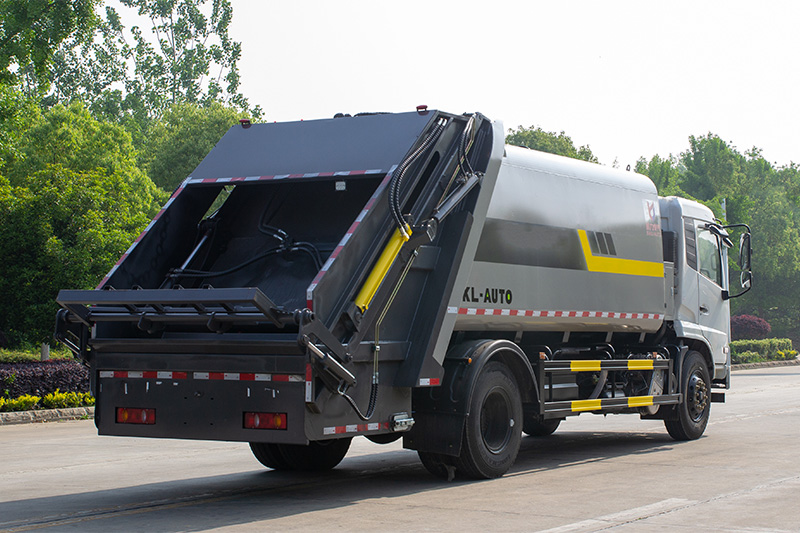

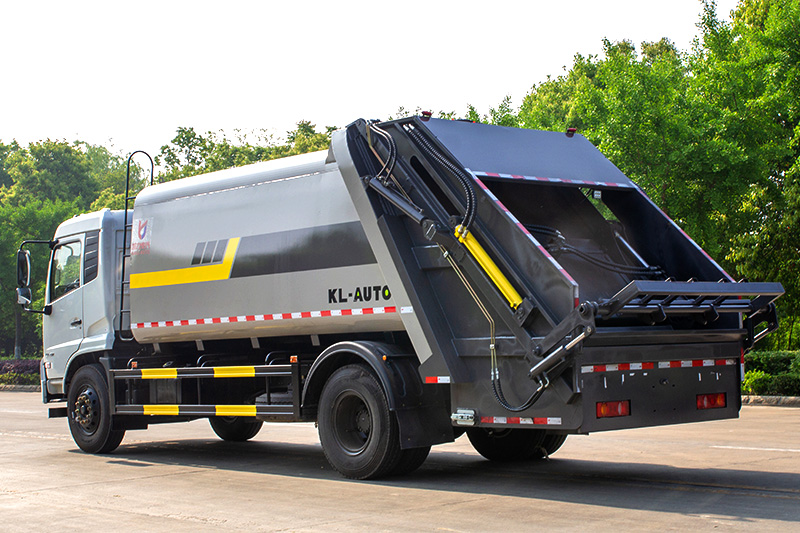

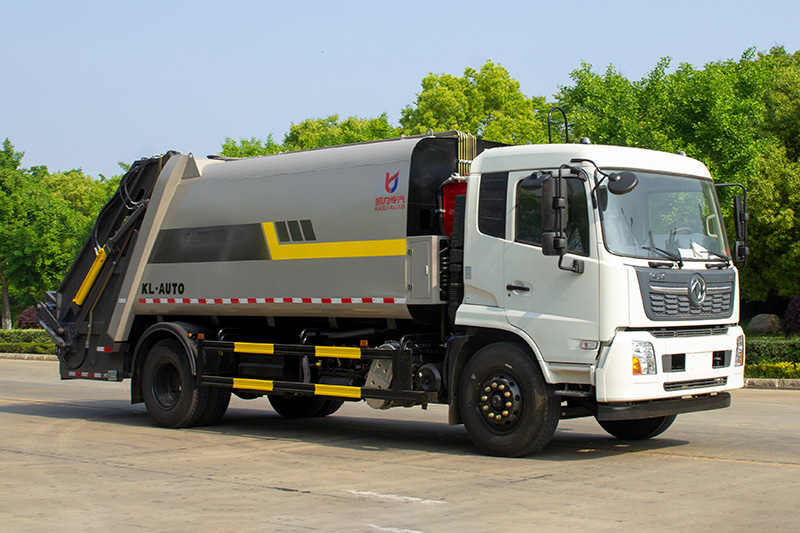

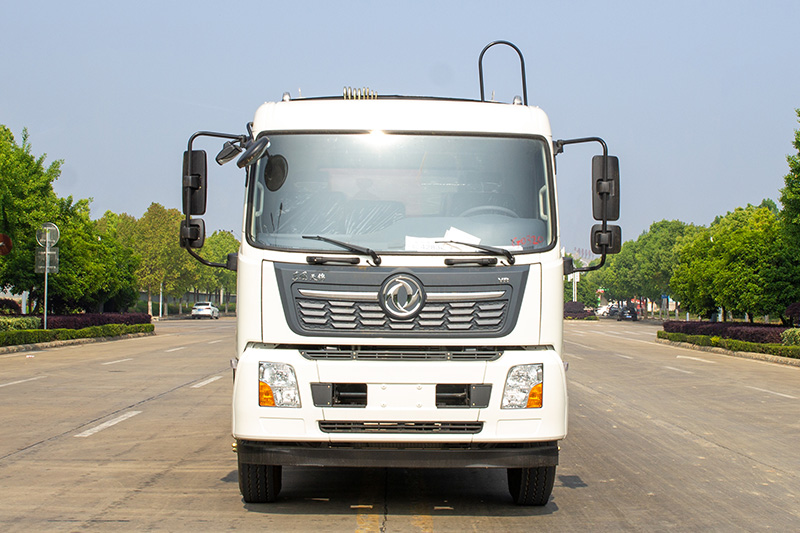

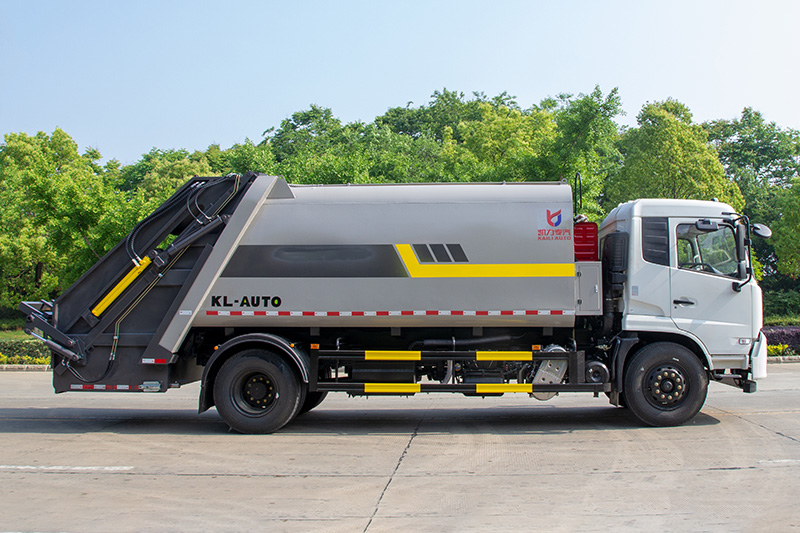

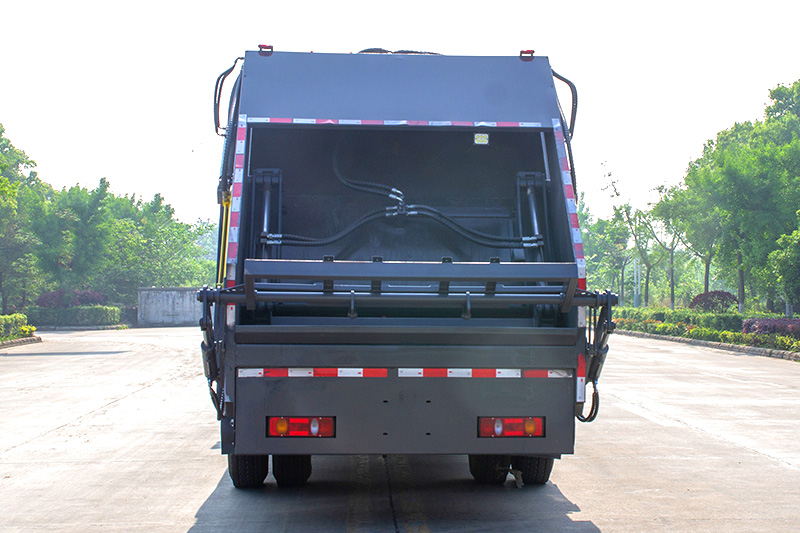

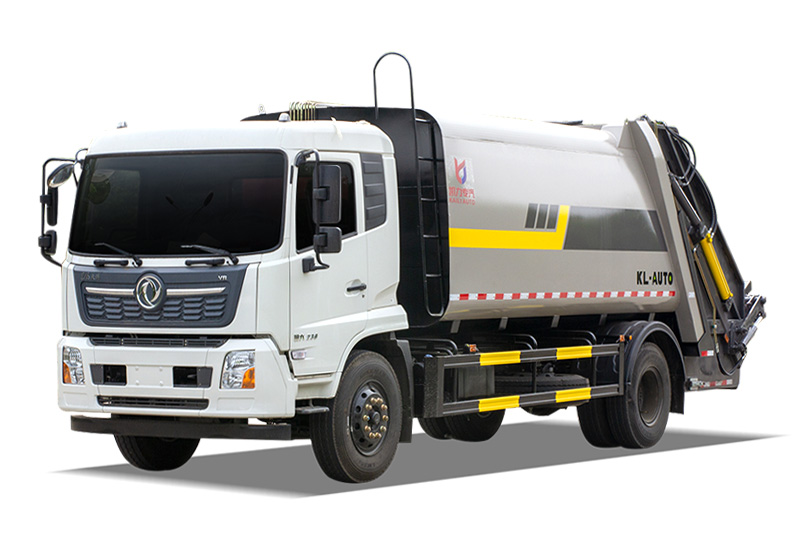

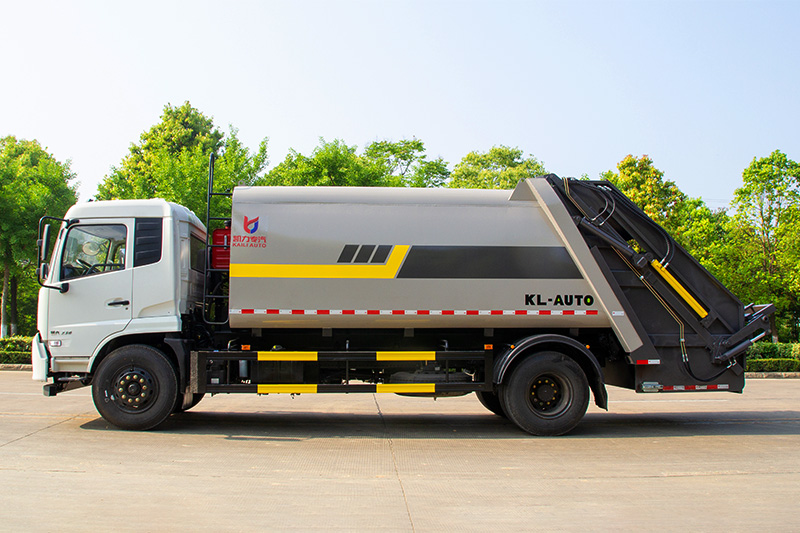

Dongfeng Tianjin - 2023 Model, 3,950 mm Wheelbase, 12.5 cubic meters
Project Parameters Notes Vehicle Model KLF5160ZYSD6 4th Generation New Compressed Wheelbase (mm) 3950 Tire Specifications 9.00 steel-belted tires / 275 tubeless tires Transmission Fast 8-speed transmission Engine Model DDi47E210-60 (Longqing 210 hp) D4.0NS6B195 (Cummins 195 hp)
