Item | Parameter | Remarks |
Vehicle Model | KLF5120ZYSE6 | 4th Generation New Compression Type |
Wheelbase (mm) | 3800 | |
Tire Specification | 245 Tubeless Tire / 8.25 Steel Wire Tire | |
Transmission | WLY 6-speed Transmission Fast 8-speed | 8.25 Steel Wire Tire Matched with Fast 8-speed |
Engine Model |
YCY30165-60 (Yuchai 165 HP) |
China VI Emission, Diesel Engine |
Engine Power (kW) | 121KW | |
Overall Dimensions 【L×W× H (mm)】 |
7350/7537/7450*2280/2400*2780/3200 | Four rear structures; overall length varies by structure |
Maximum Gross Mass (kg) | 11995 | |
Rated Load Mass (kg) | 5300,4976,5365,5041,4660,4725 | |
Curb Weight (kg) | 6500,6824,7140 | Certified based on actual vehicle weight |
Effective Box Volume (m³) | 10 | |
Operation Mode | Electric Control / Manual / Remote Control | Three operation modes are standard |
Single Loading Cycle Time |
12–25S | |
Unloading Time | ≤25S |

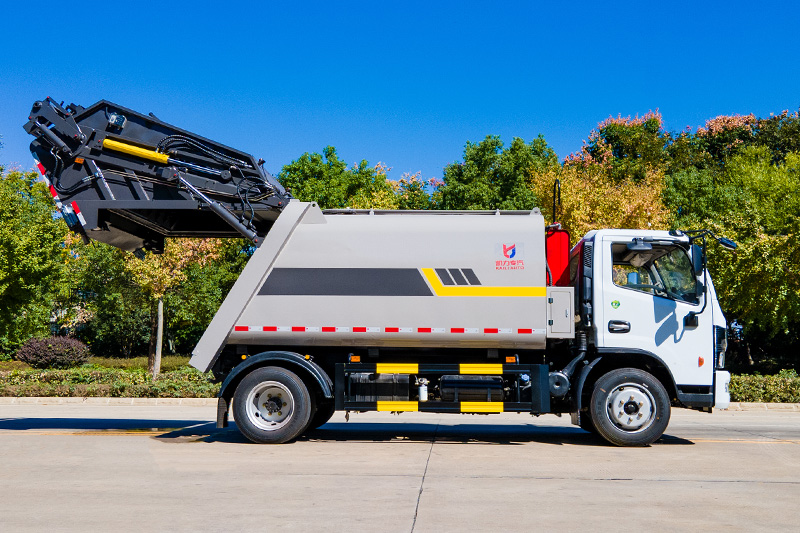

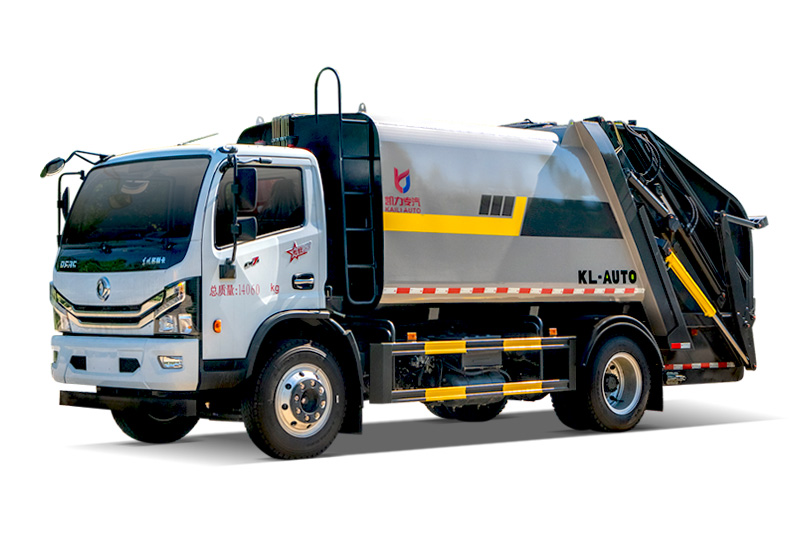

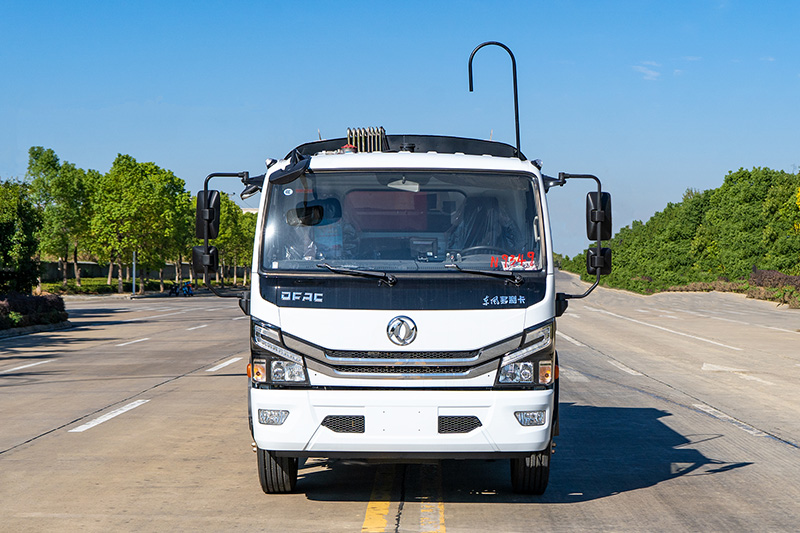

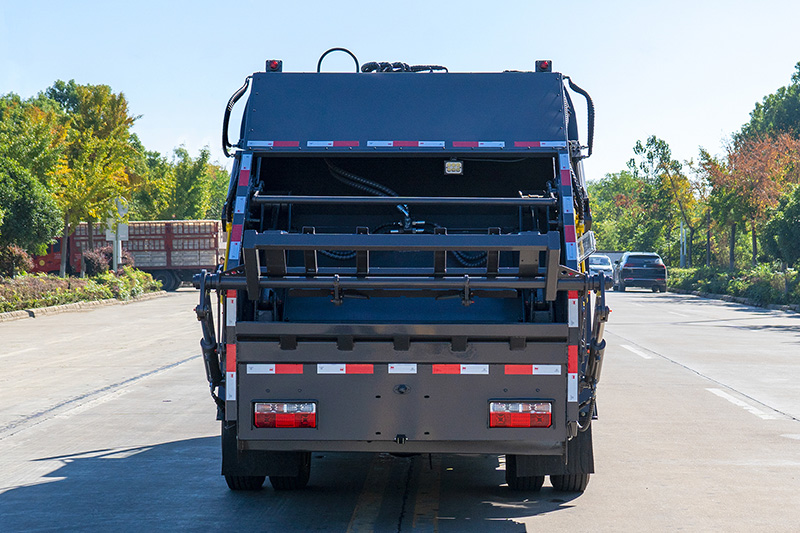

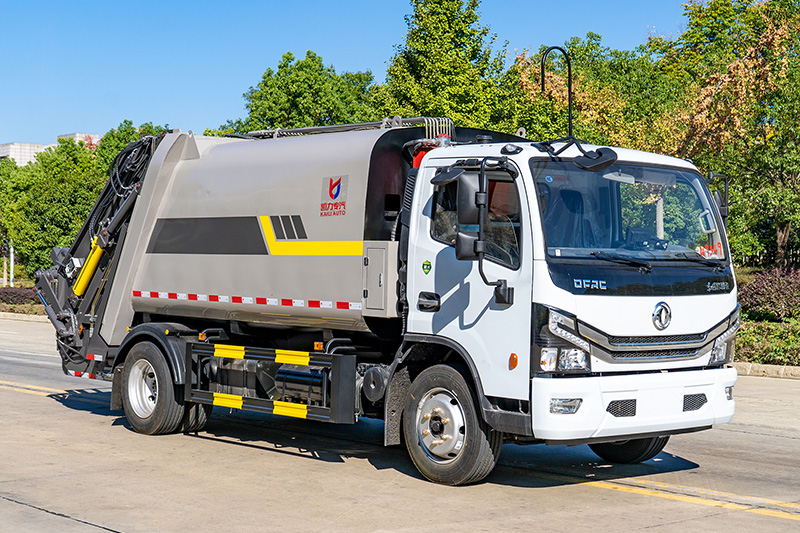

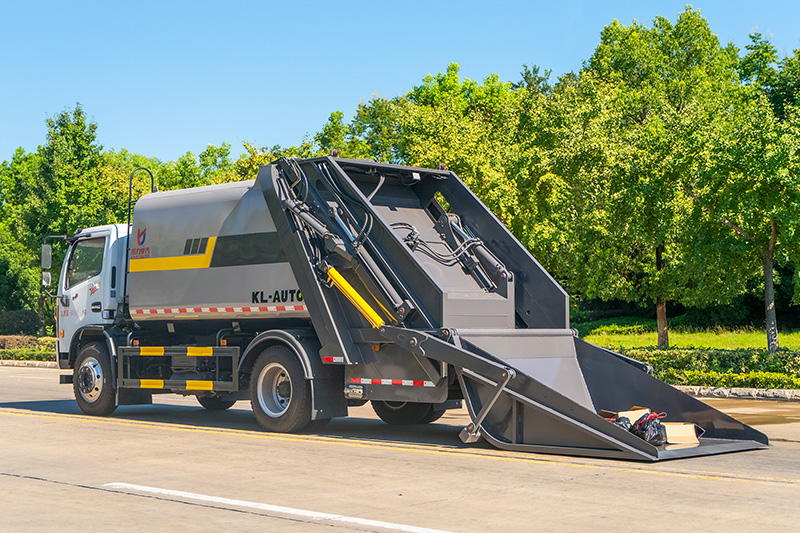

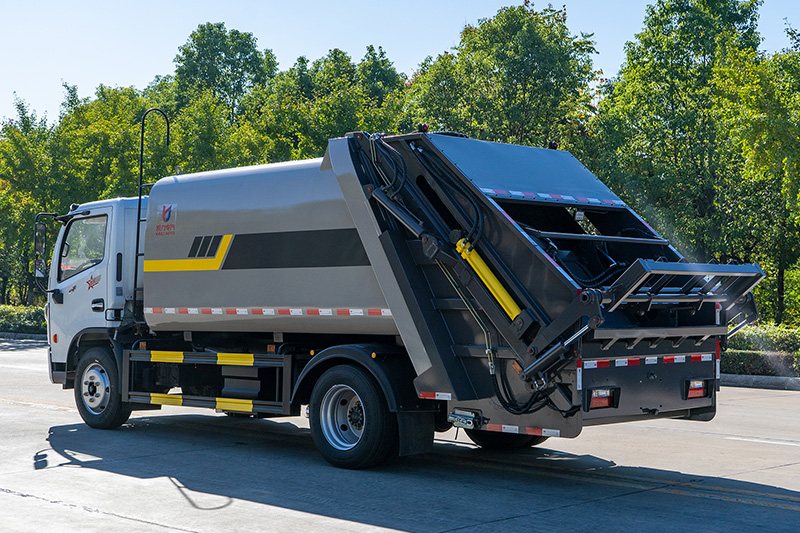

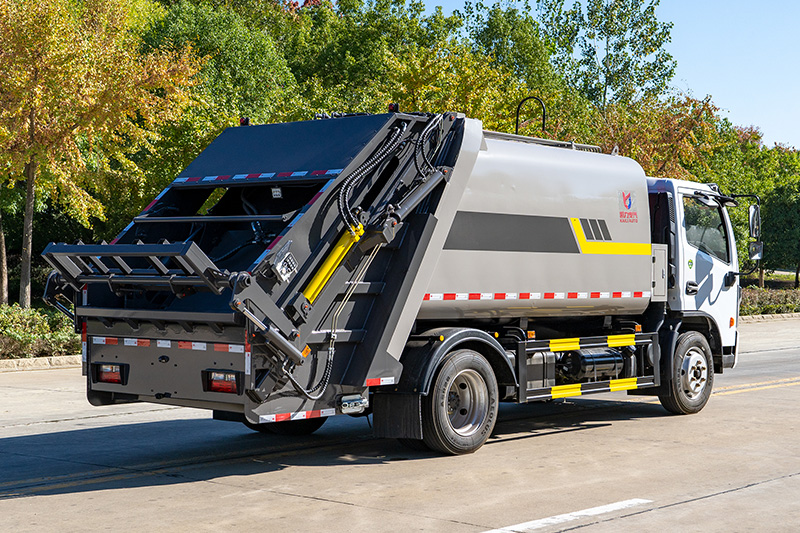

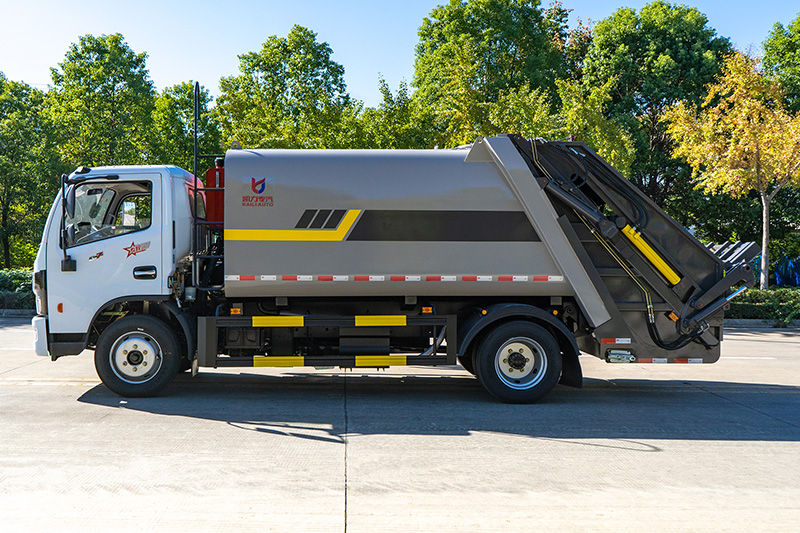

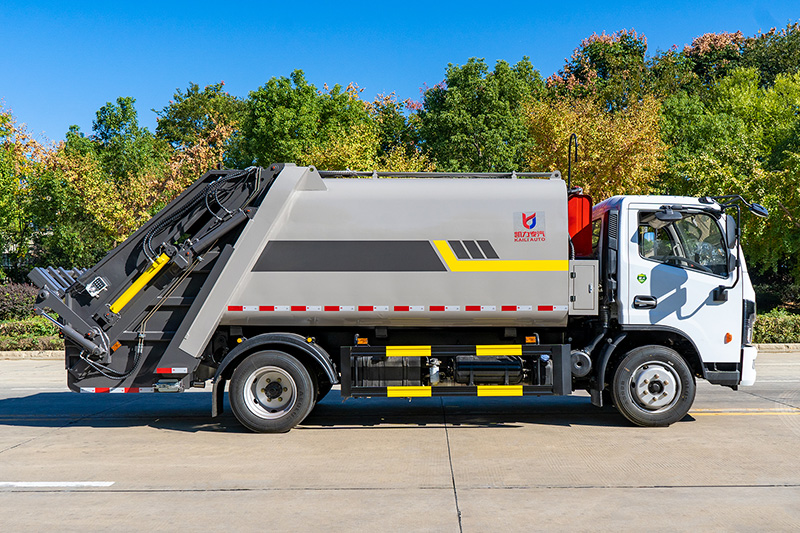

2023 Dongfeng D7 Compactor Garbage Truck, 10 cubic meters
Project Parameters Remarks Vehicle Model KLF5120ZYSE6 4th Generation New Compressed Model Wheelbase (mm) 3800 Tire Specifications 245 Tubeless Tires / 8.25 Steel-belted Tires Transmission Wanliyang 6-speed Transmission Fast 8-speed 8.25 Steel-belted Tires paired with Fast 8-speed Engine Model YCY30165-60 (Yuchai 165 hp) National
