Configuration Parameters of KLF5250TCXZ6 Snow Removal Vehicle | |||
Gross Weight (kg) |
25000 |
Rated Load (kg) |
8990 |
Curb Weight (kg) |
16390, 15880 |
Chassis Model |
ZZ5256XXYN504GF1 |
Engine Model |
MC07H.35-60 |
Power (kW)/HP(ps) |
257/350 |
Body Lifting Angle |
45° | Overall Dimensions (L×W×H, mm) | 9810×2500,2550× 3450,3500 |
Wheelbase (mm) |
4300+1350 |
Tire Specification |
11.00R20 |
Snow Plow Parameters | |||
Plow Size (mm) |
3000*1000*1200 |
Working Speed (km/h) |
30～40 |
Obstacle Height (mm) |
≤260 |
Left/Right Deflection |
≥30° |
Snow Sweeper Parameters | |||
Overall Dimensions (mm) |
3200*1500*1200 |
Brush Diameter (mm) |
800 |
Snow Thickness (mm) |
≤120 |
Working Speed (r/min) |
≥200-300 |
Snow Melting Spreader Parameters | |||
Spreader Volume (m³) |
8-10 |
Spreading Width (m) |
1-20 (Adjustable) |
Salt Spreading Rate (g/㎡) |
20～150 (Adjustable) |
Auxiliary Engine | Kama Diesel Engine (6.3KW) |

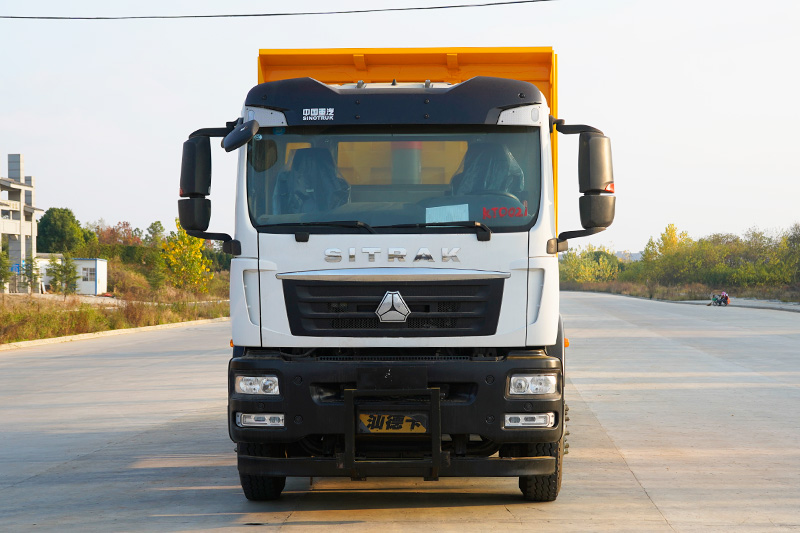

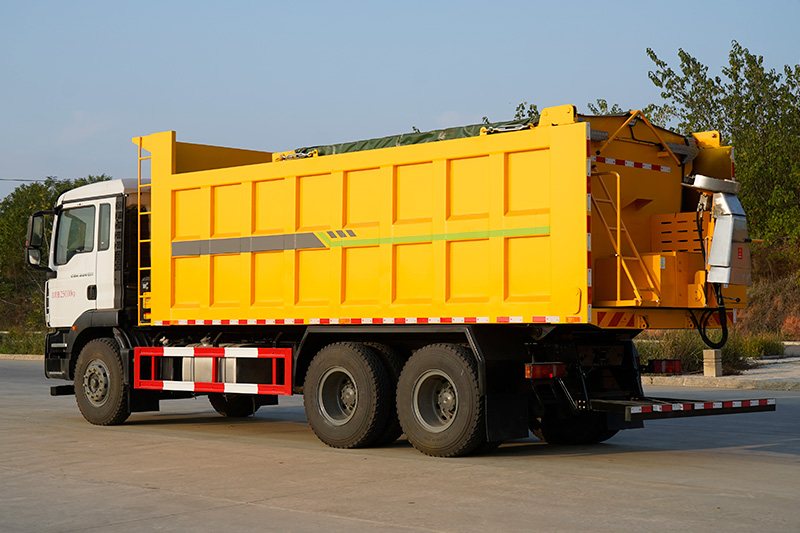

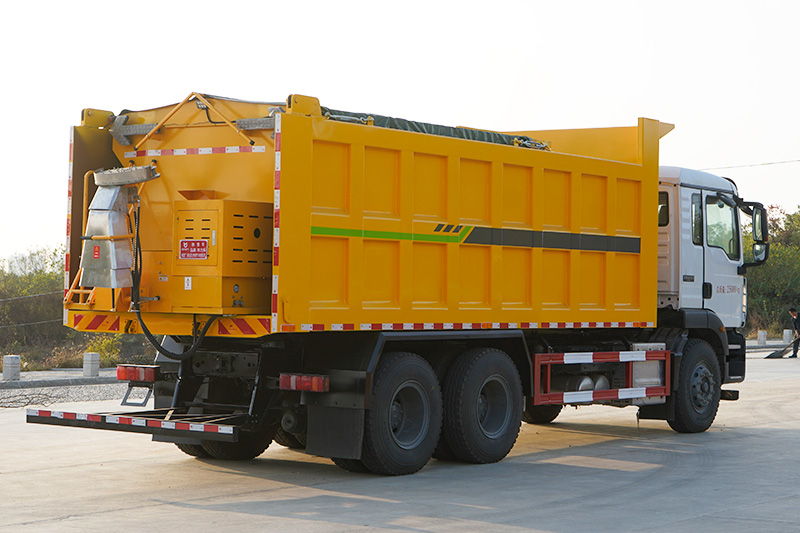

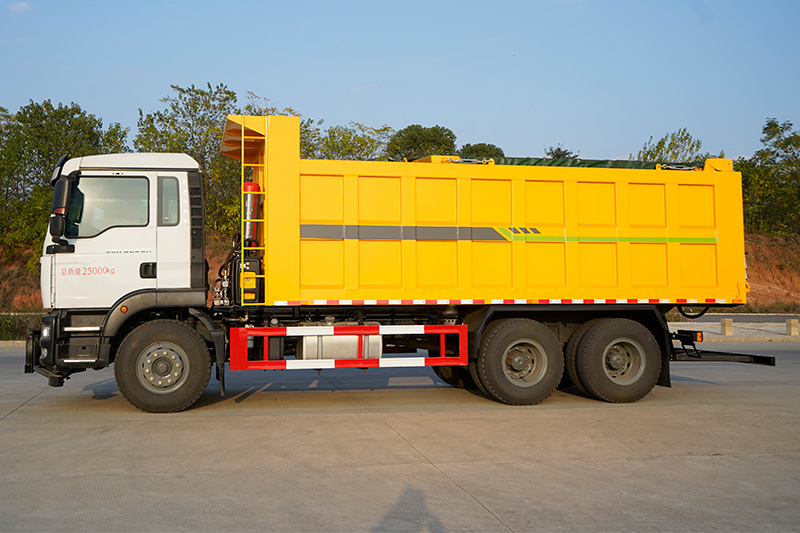

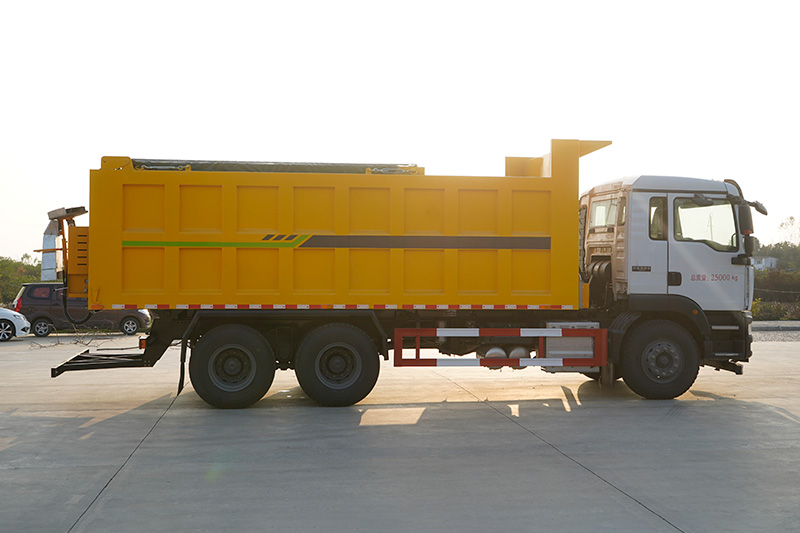

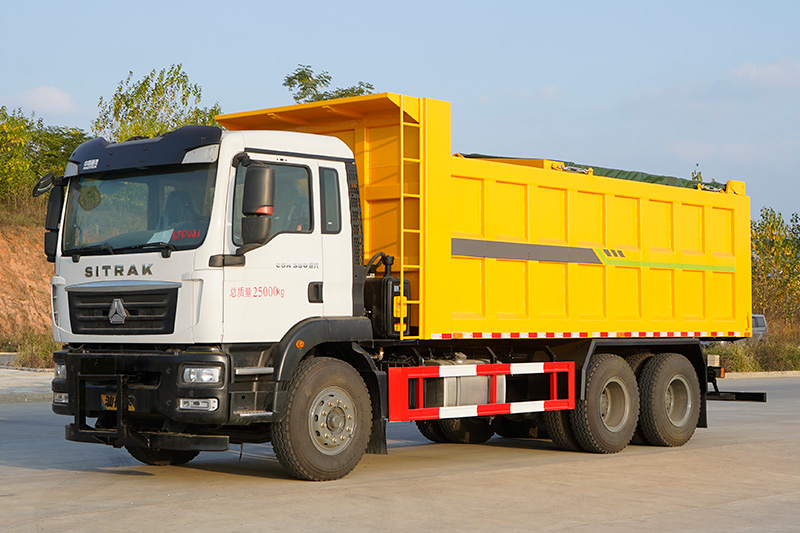

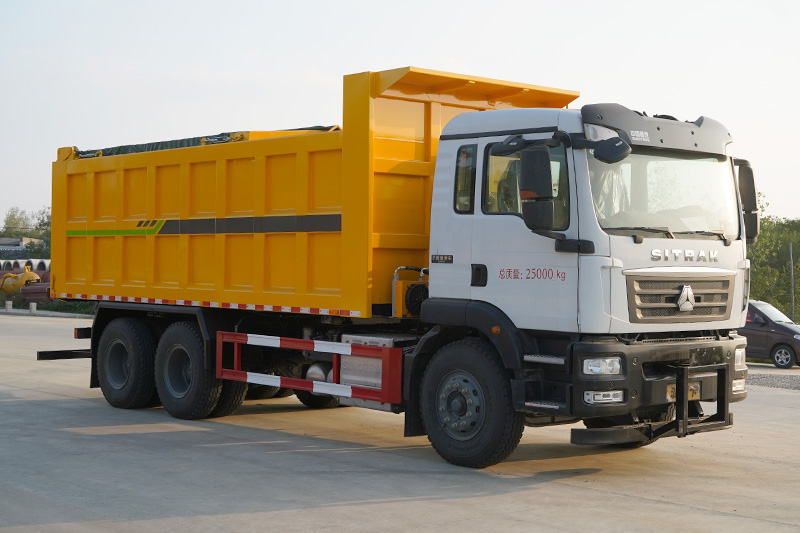

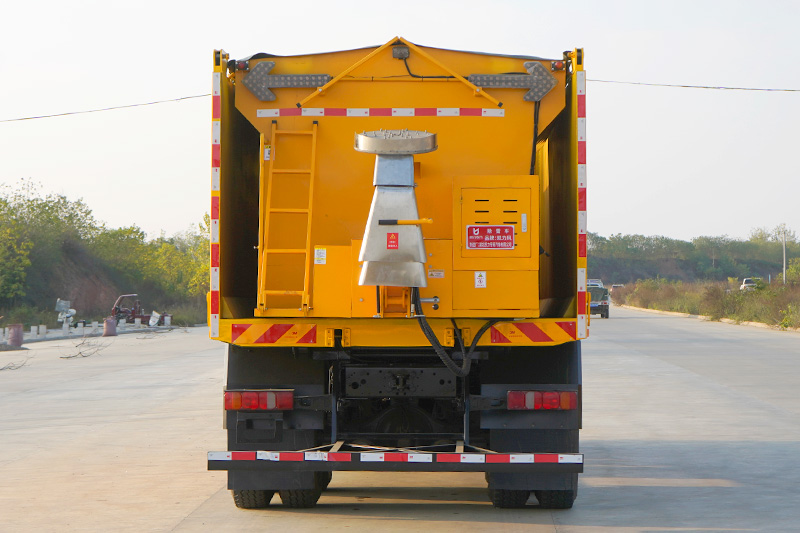

Kailifeng-Sinotruk Shandong Snow Plow
Kailifeng KLF5250TCXZ6 Snow Plow Specifications Gross Vehicle Weight (kg) 25,000 Rated Weight (kg) 8,990 Curb Weight (kg) 16,390, 15,880 Chassis Model ZZ5256XXYN504GF1 Engine Model
