Configuration Parameters of KLF5180TCXD6 Snow Removal Vehicle | |||
Gross Mass (kg) |
18000 |
Rated Load (kg) |
8890 |
Curb Weight (kg) |
8980,8915 |
Chassis Model |
DFH1180EX8 |
Engine Model |
B6.2NS6B230 |
Power (kW) / HP (ps) |
169/230 |
Cargo Body Thickness (mm) |
Side 2, Bottom 3 | Overall Dimensions (L×W×H, mm) | 8650,8850×2500× 3250,3450 |
Wheelbase (mm) |
4700 |
Tire Specification |
10.00R20 |
Snow Plow Parameters | |||
Plow Size (mm) |
3000*1000*1200 |
Working Speed (km/h) |
30～40 |
Obstacle Height (mm) |
≤260 |
Left/Right Deflection |
≥30° |
Snow Sweeper Parameters | |||
Overall Dimensions (mm) |
3200*1500*1200 |
Brush Diameter (mm) |
800 |
Snow Thickness (mm) |
≤120 |
Working Speed (r/min) |
≥200-300 |
Snow Melting Spreader Parameters | |||
Spreader Volume (m³) |
8-10 |
Spreading Width (m) |
1-20 (Adjustable) |
Salt Spreading Rate (g/㎡) |
20～150 (Adjustable) |
Auxiliary Engine |
Kama Diesel Engine (6.3KW) |

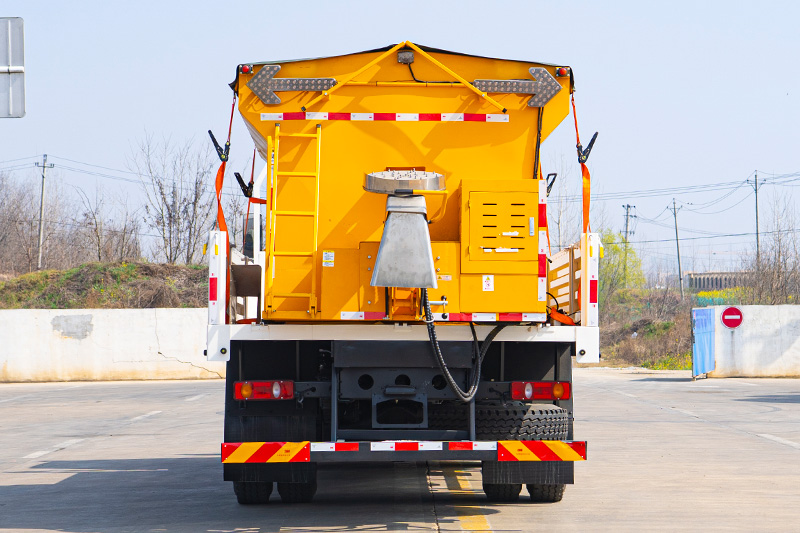

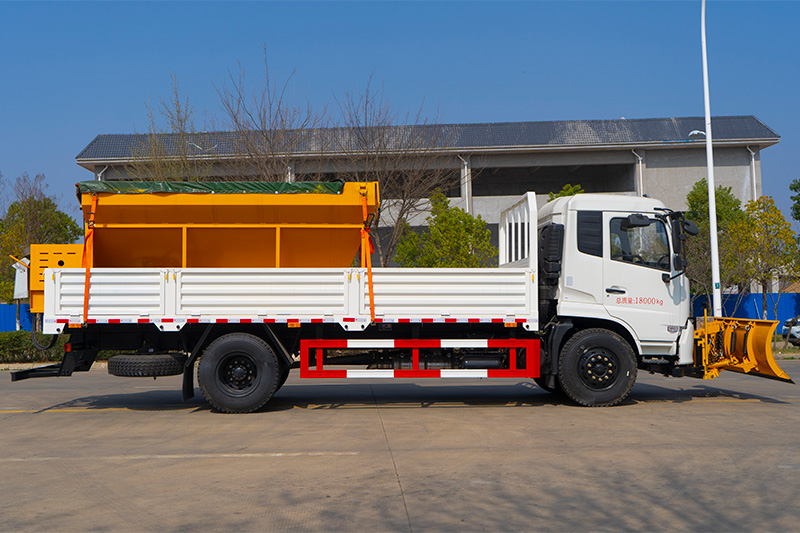

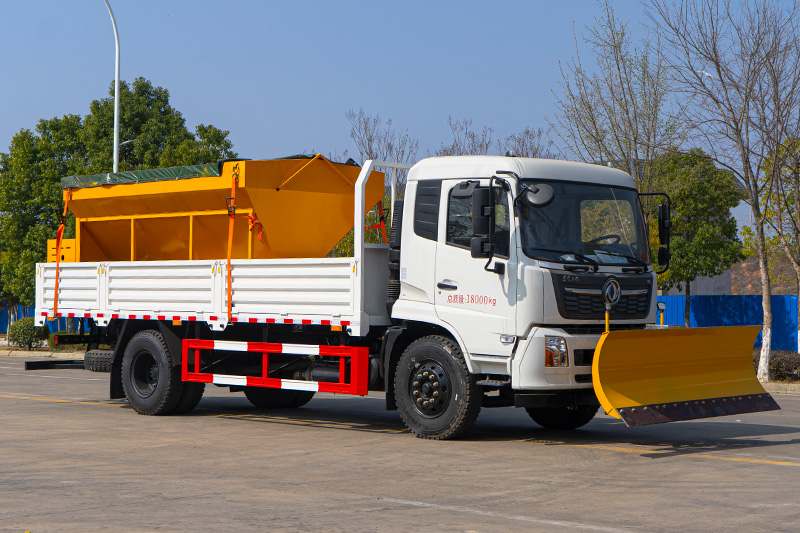

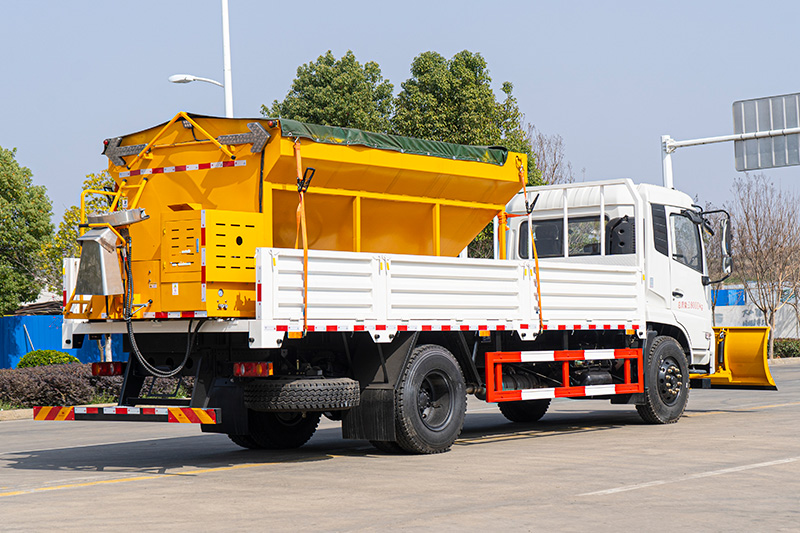

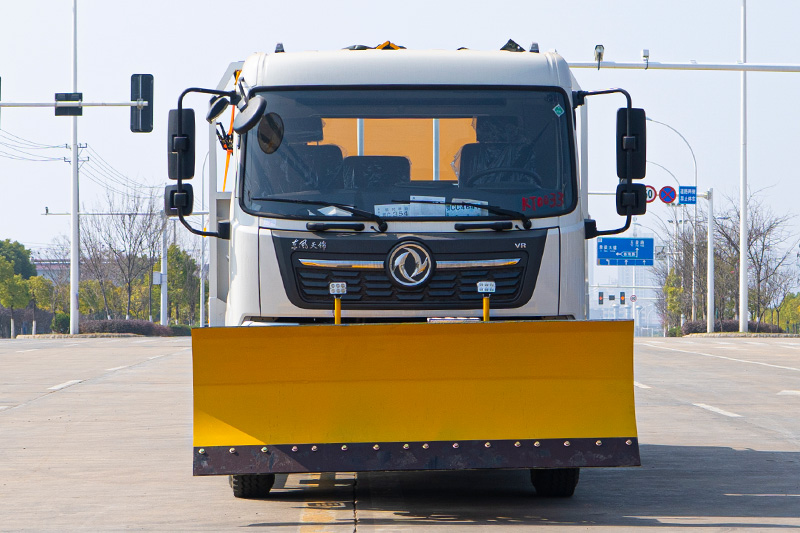

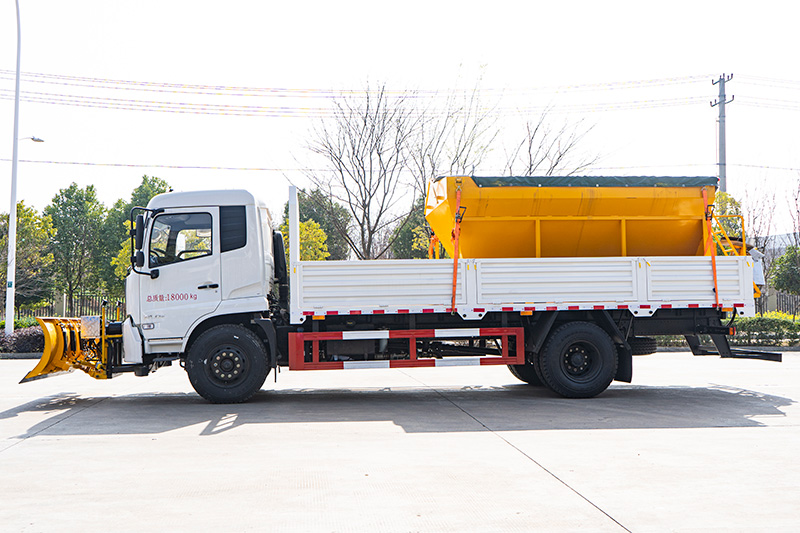

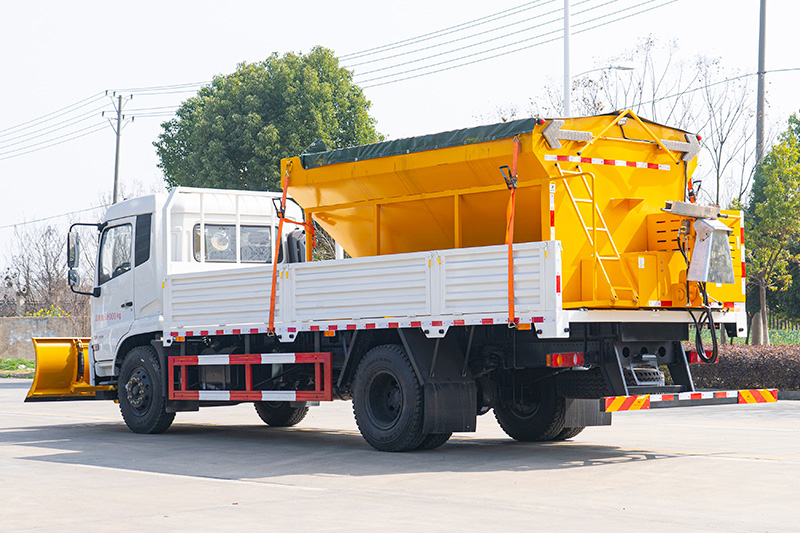

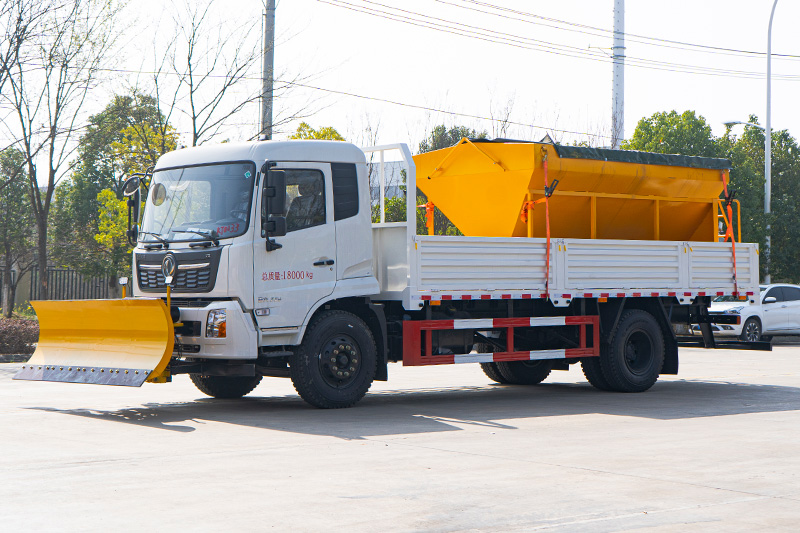

Kailifeng-Dongfeng Tianjin Snow Plow Truck
Kailifeng KLF5180TCXD6 Snow Plow Specifications and Parameters Gross Vehicle Weight (kg): 18,000 Rated Weight (kg): 8,890 Curb Weight (kg): 8,980, 8,915 Chassis Model: DFH1180EX8 Engine Model: B6.2NS6B230 Power
