Item | Parameter | Remarks |
Vehicle Model | KLF5180GXWD6 | |
Wheelbase (mm) | 3950,4500, | |
Engine Model | B6.2NS6B230, B6.2NS6B210, YCS04200-68 |
China VI Emission, Diesel Engine |
Engine Power (kW) | 169, 154, 147 | |
Overall Dimensions [L×W×H (mm)] | 7800,7950,7860,8010,7660,7810,7730,7880 × 2550 × 3450,3380 | |
Curb Weight (kg) | 8140,8500 | |
Gross Vehicle Weight (kg) | 18000 | |
Working Speed (km/h) | Engine Speed r/min | Stationary Neutral Operation |
Effective Tank Volume (m³) | 12 | |
Hydraulic System Pressure (MPa) | 18 | |
Operation Mode |
Manual |

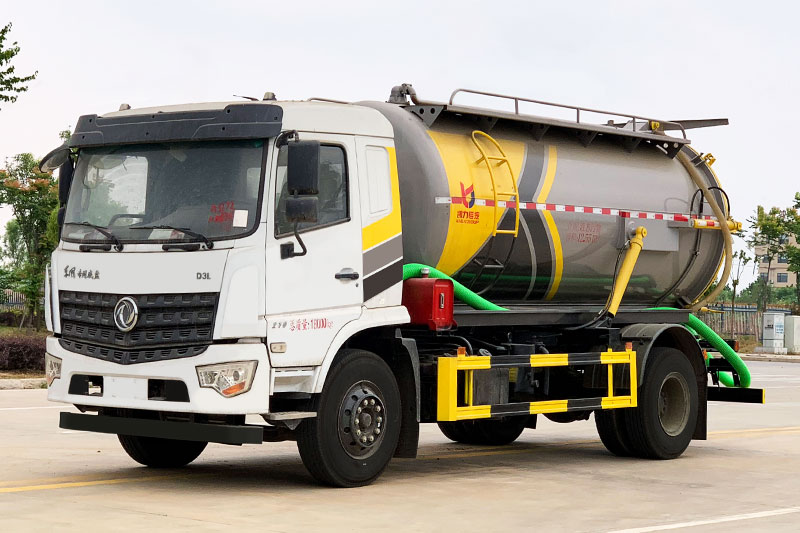

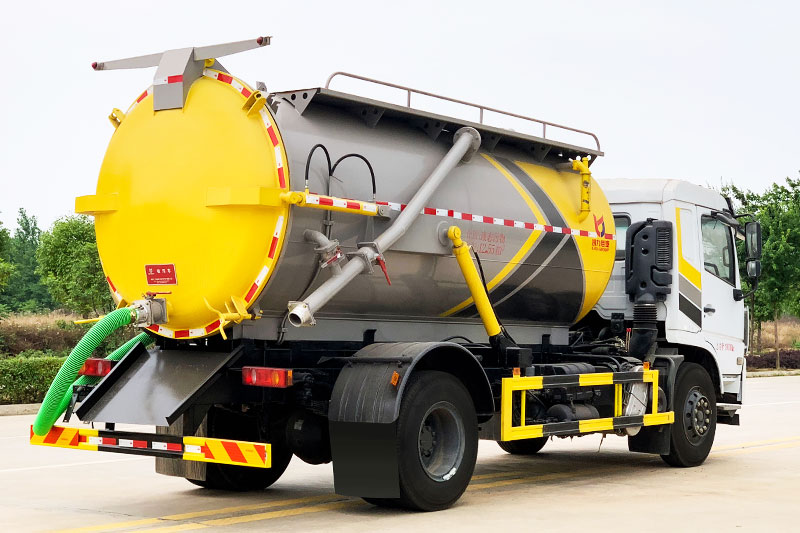

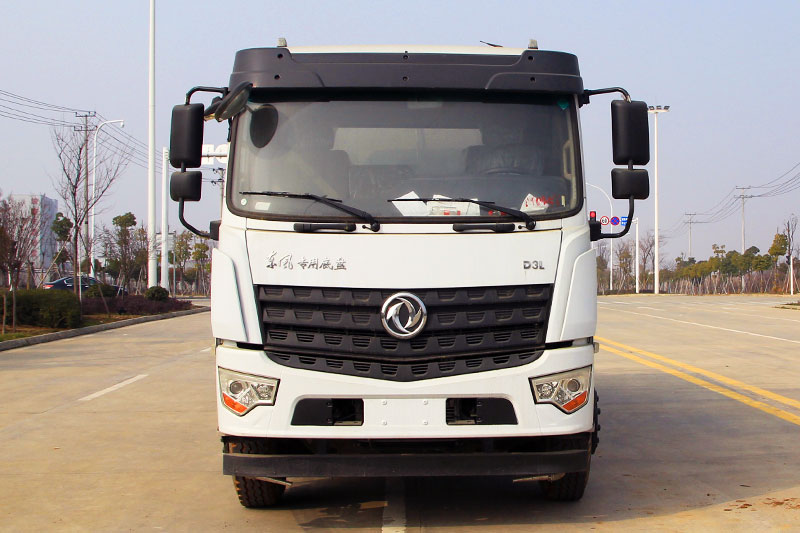

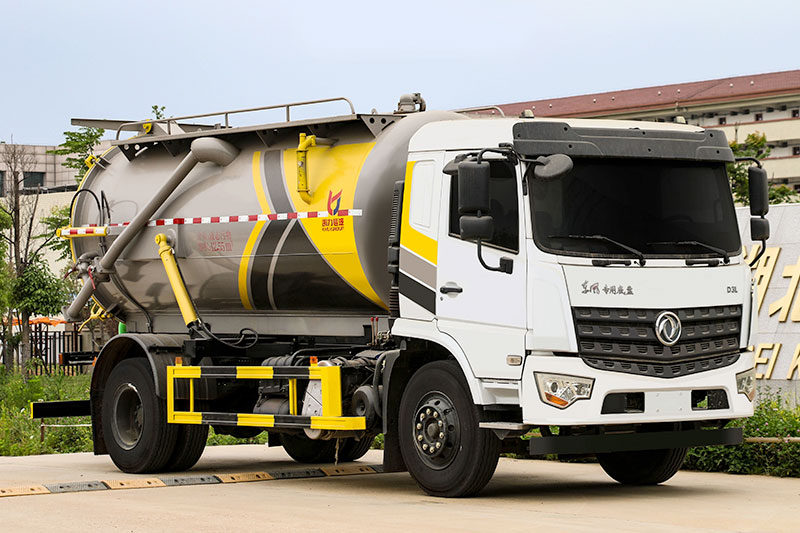

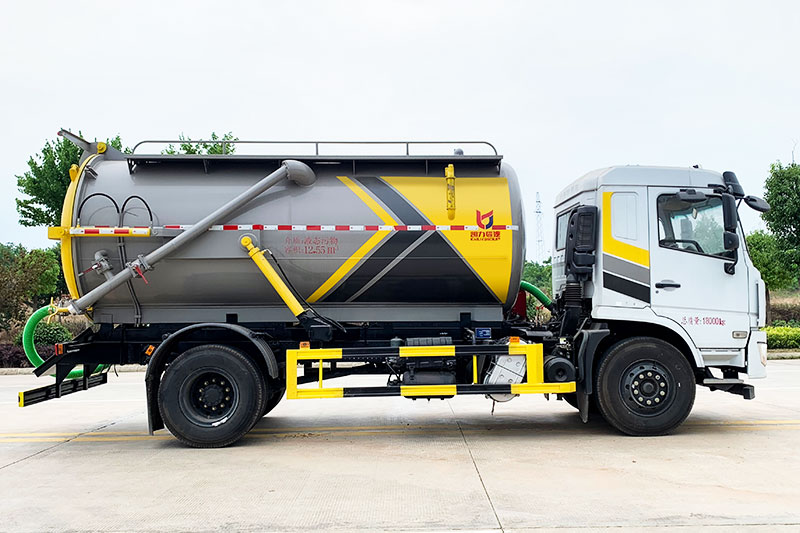

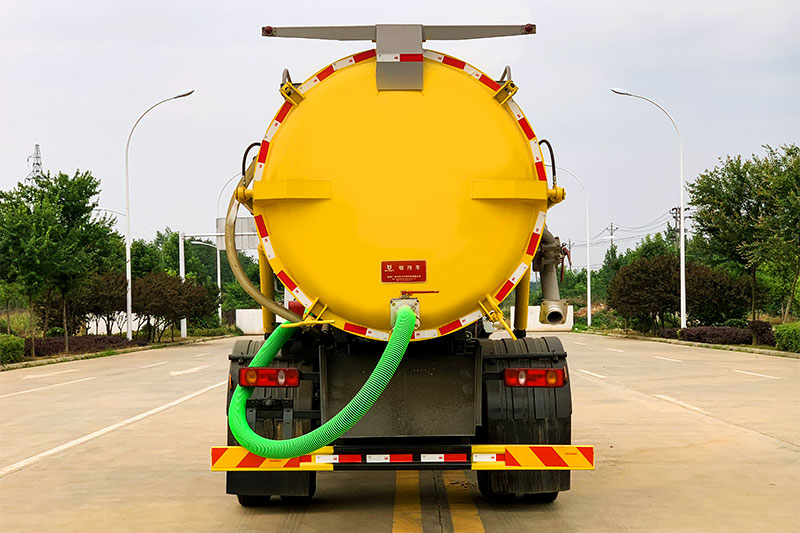

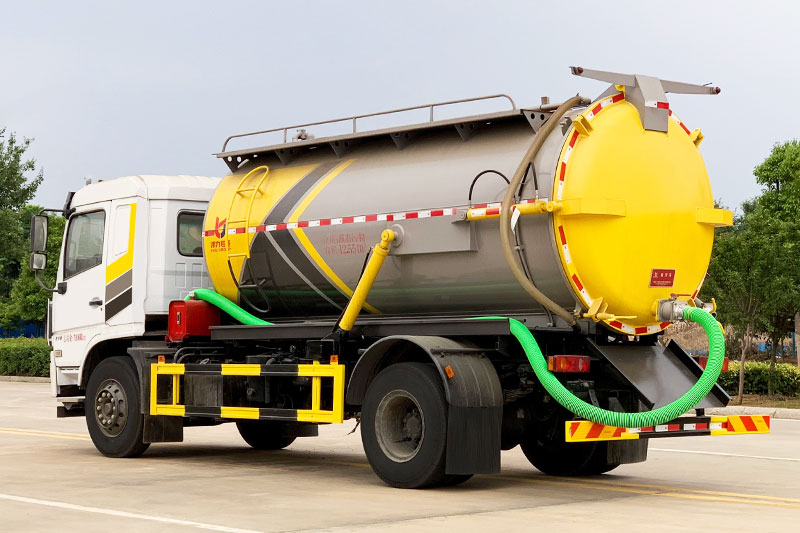

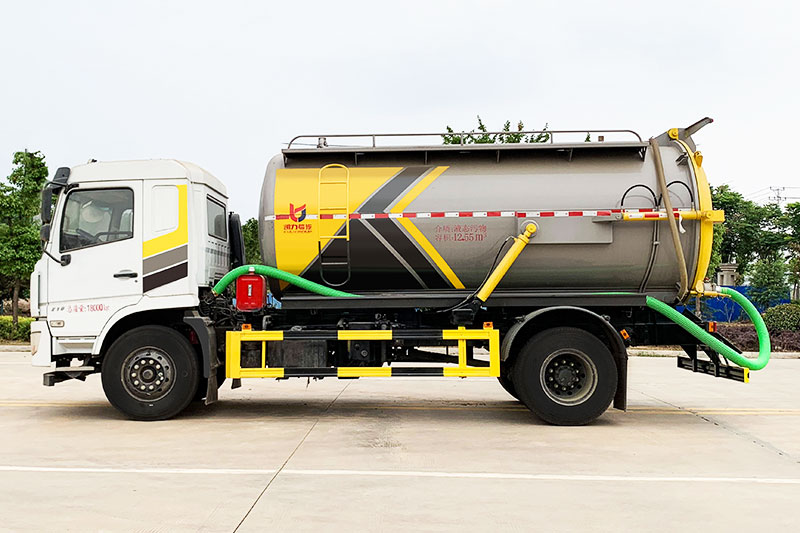

Dongfeng D3L Special Chassis Vacuum Truck, 12 cubic meters
Project Parameters Remarks Vehicle Model KLF5180GXWD6 Wheelbase (mm) 3950, 4500, Engine Model B6.2NS6B230, B6.2NS6B210, YCS04200-68 National VI Emission Standard, Diesel Engine Engine Power (kW) 169, 154, 147 Dimensions [Length × Width × Height (mm)] 7800, 7950
