Category | Item | Parameter or Configuration |
Vehicle Parameters | Product Model | KLF5180TDYD6 |
Overall Dimensions 【Length × Width × Height (mm)】 | 9130,9750,9850,8750,9370,9470,8550,9170,9270,8950,9570,9670*2550*3750 | |
Curb Weight (kg) | 10160,10460 | |
Maximum Gross Mass (kg) | 18000 | |
Rated Load Mass (kg) | 7710,7645,7345,7410 | |
Rated Occupants | 3 persons | |
Chassis Parameters | Chassis Model | DFH1180EX8 |
Chassis Manufacturer | Dongfeng Commercial Vehicle Co., Ltd. | |
Engine Model | D4.5NS6B190, D6.7NS6B230 | |
Engine Power (kW) | 140, 169 | |
Wheelbase (mm) | 4500,4700 | |
Max. Speed (km/h) | 89,98 | |
Fuel Tank Capacity (L) | -- | |
Special Parameters | Effective Tank Volume (m³) | 11.5 m³ |
Front Flushing Width (m) | 18 | |
Rear Sprinkling Width (m) |
12 | |
Water Cannon Range (m) |
35 | |
Vertical Suction Lift (m) |
7 |

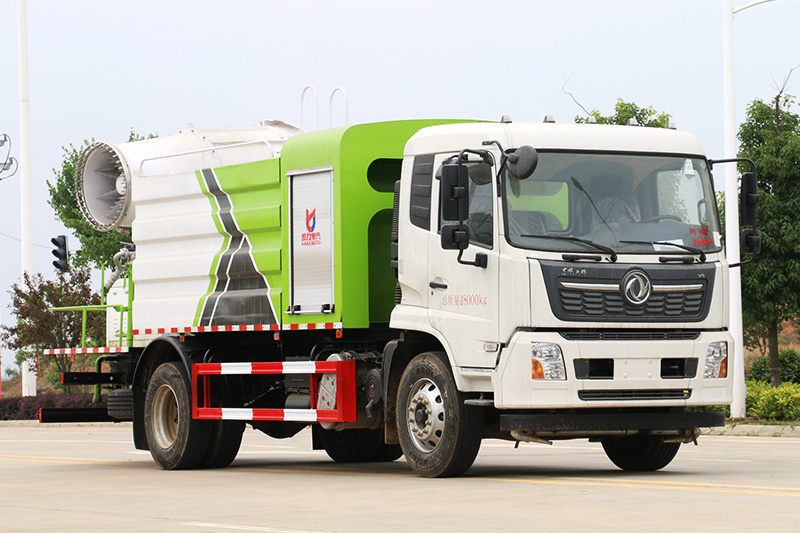

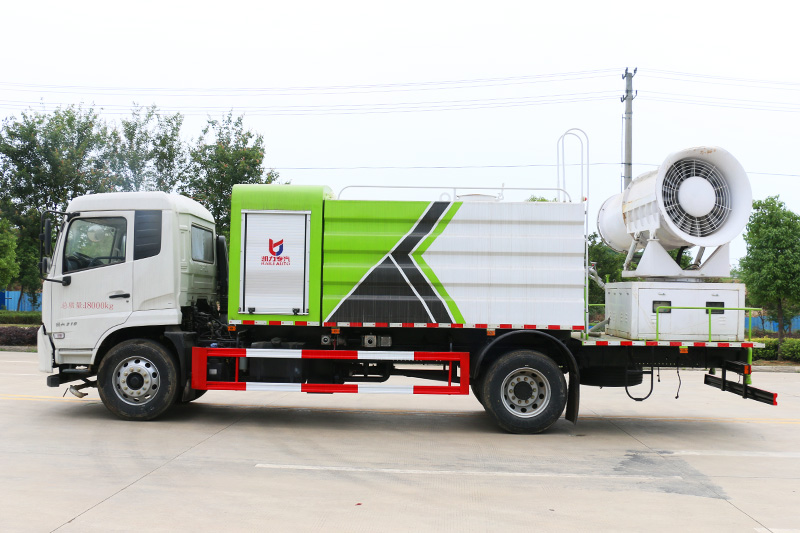

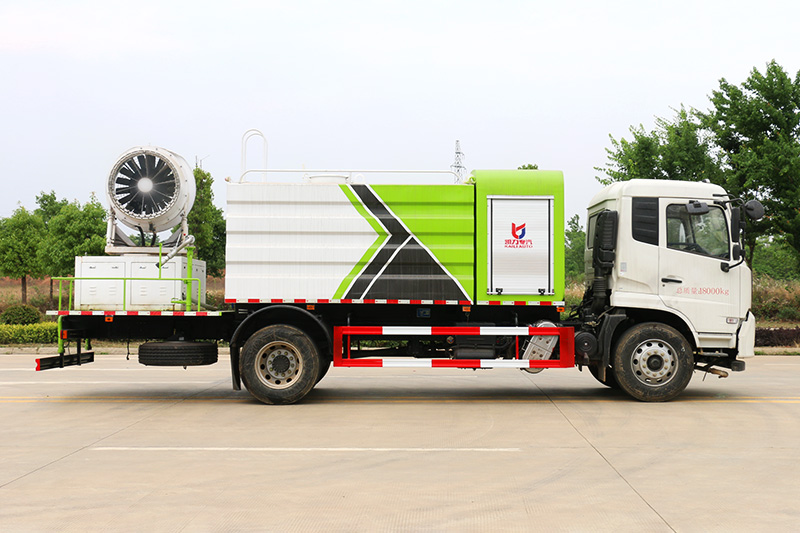

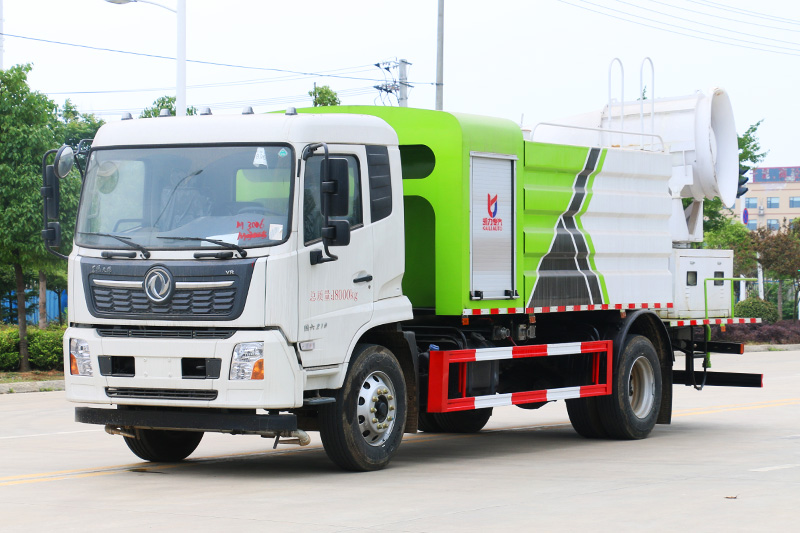

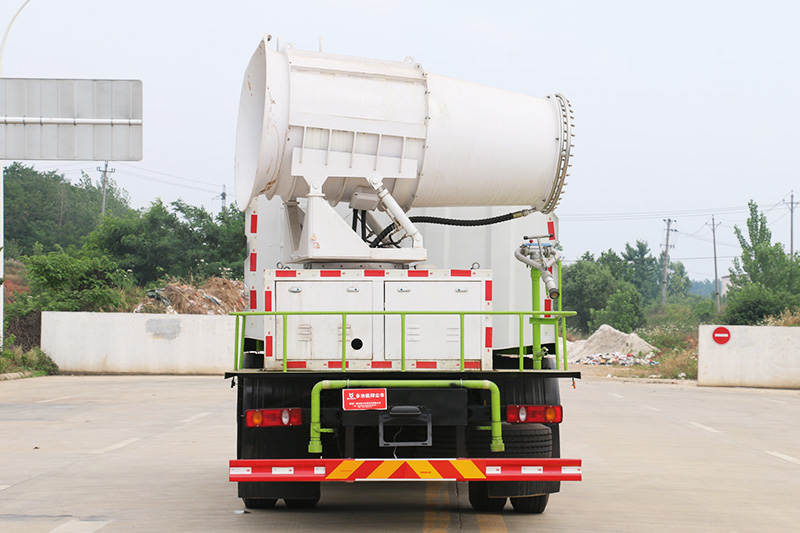

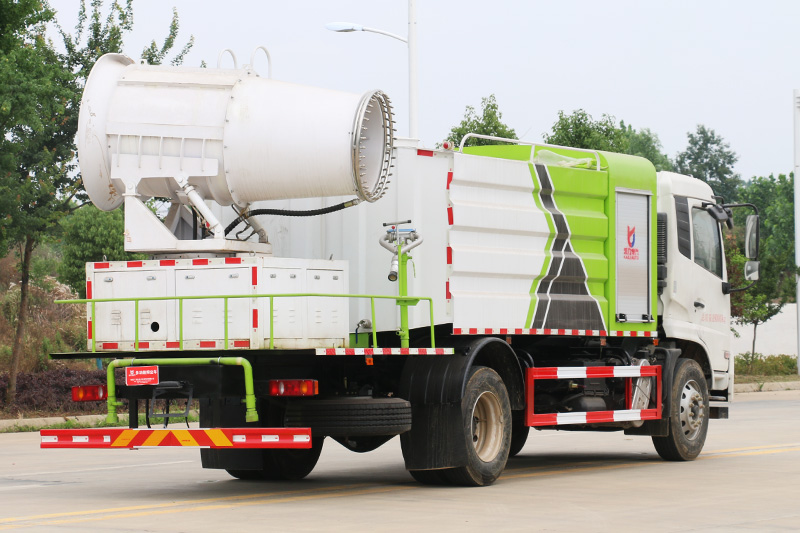

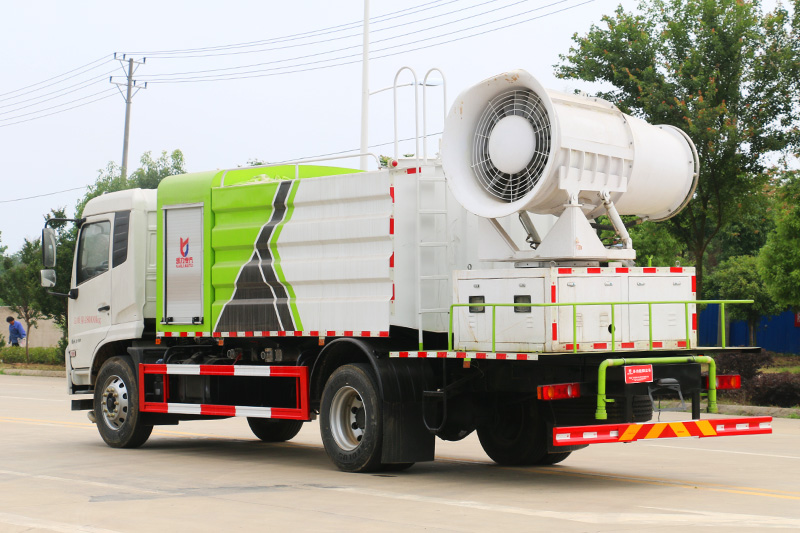

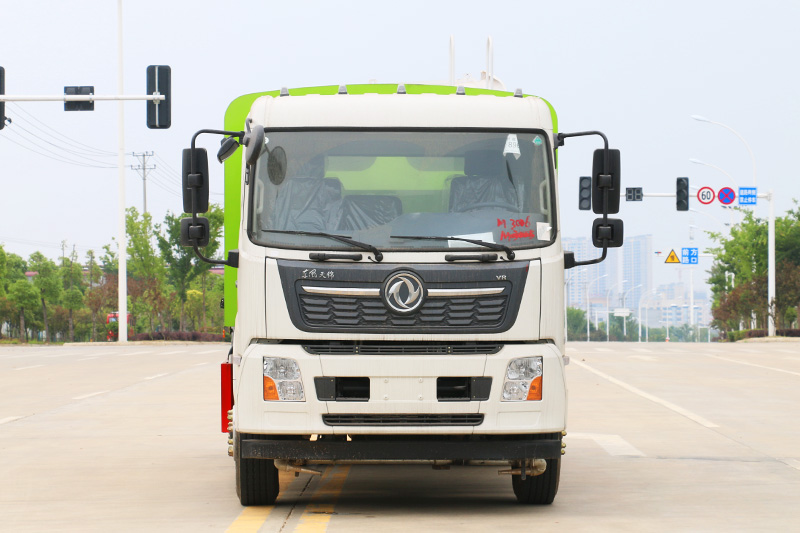

Dongfeng Tianjin Dust Suppression Truck (Square Tank) 11.5 cubic meters (Mist Cannon 30–100 meters)
Category, Item, Parameters or Configuration Vehicle Specifications Product Model KLF5180TDYD6 Dimensions [Length × Width × Height (mm)] 9130, 9750, 9850, 8750, 9370, 9470, 8550, 9170, 9270, 8950, 9570, 9670 × 2550 × 3750 Curb Weight (kg) 10160, 10460 Max
