Category | Item | Specification or Configuration |
Vehicle Parameters | Model | KLF5040TDYB6 |
Overall Dimensions [L×W×H (mm)] |
5995*2050,2250,2275*2820,2620,2420 | |
Curb Weight (kg) | 3800/4000 | |
Rated Load Capacity (kg) | 300/500 | |
Gross Weight (kg) | 4495 | |
Rated Seating | 2 persons | |
Chassis Parameters | Chassis Model | BJ1043V9JDA-01 |
Chassis Manufacturer | Beiqi Foton Motor Co., Ltd. | |
Engine Model | D20TCIF1/WP2.3NQ130E61 | |
Engine Power (kW) | 93/96 | |
Wheelbase (mm) | 3360 | |
Max. Speed (km/h) | 80 | |
Fuel Tank Capacity (L) | / | |
Special Parameters | Effective Tank Volume (m³) | 1.5m³ |
Front Flushing Width (m) | 18 | |
Rear Sprinkling Width (m) |
12 | |
Water Cannon Range (m) |
35 | |
Vertical Suction Lift (m) |
7 |

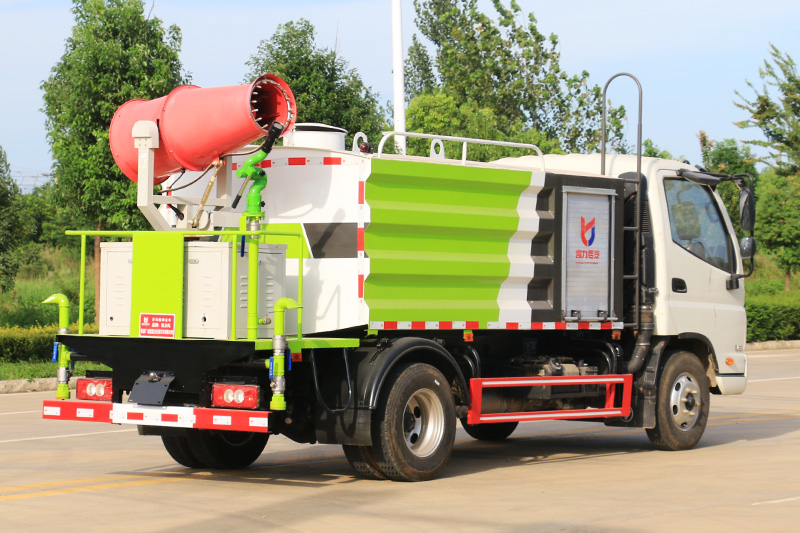

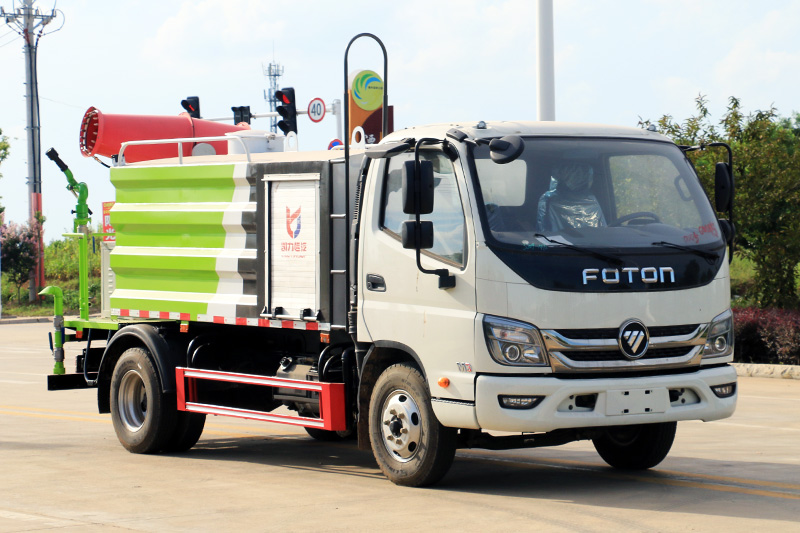

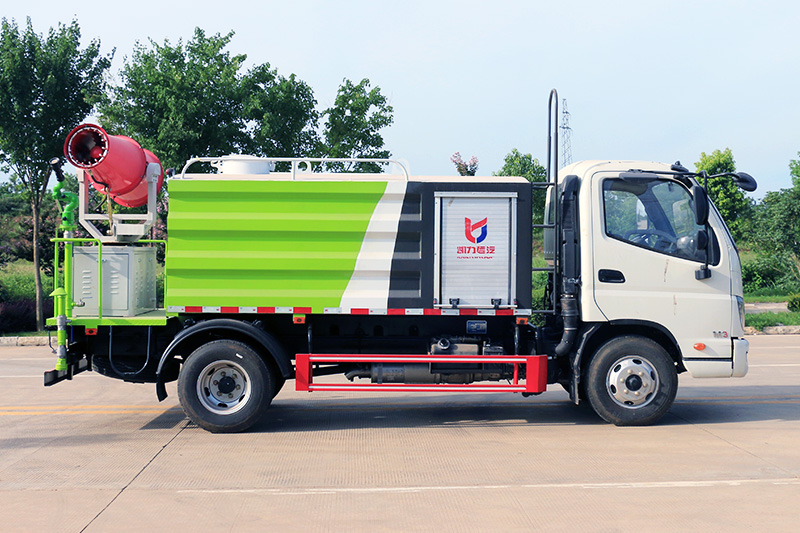

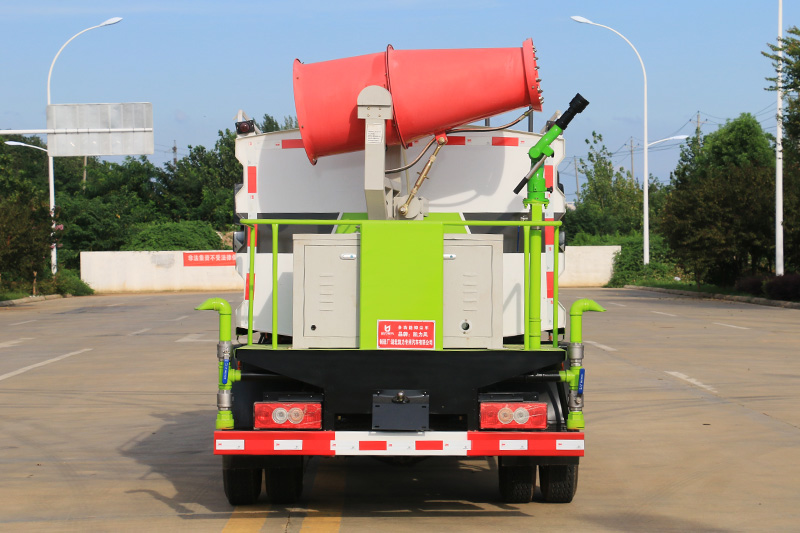

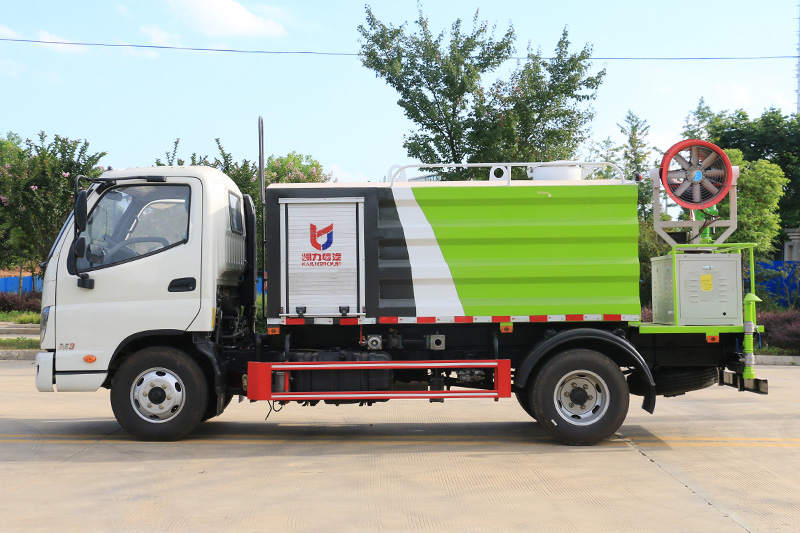

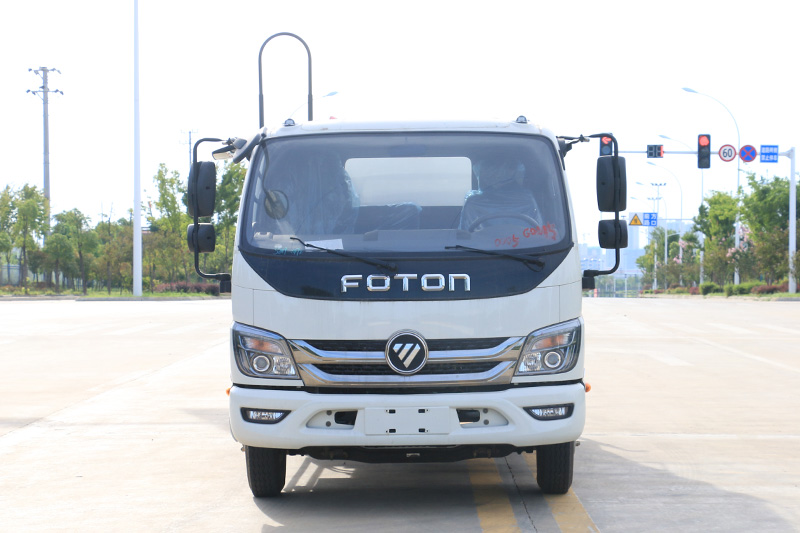

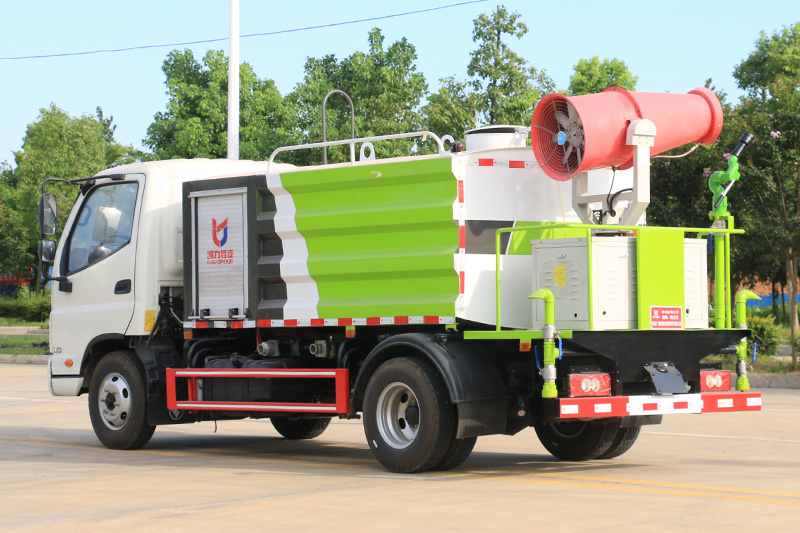

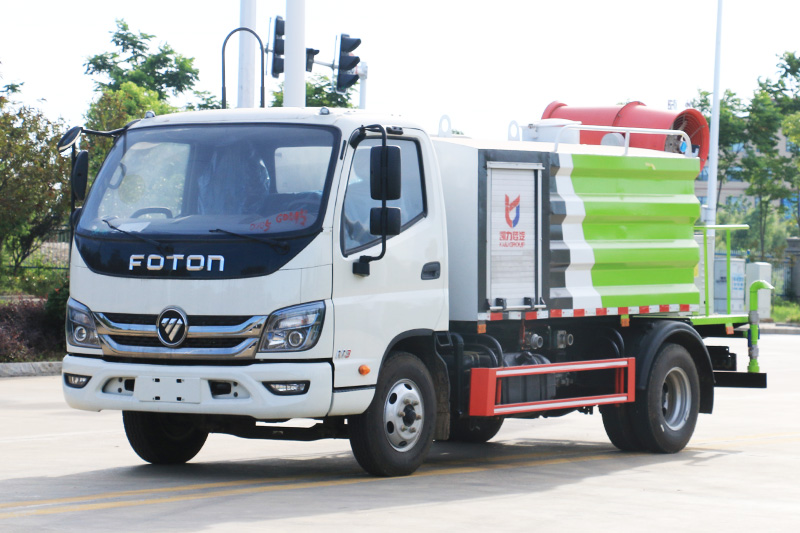

Kaima Dust Suppression Truck (Square Tank) 1.5 cubic meters (Mist Cannon Range: 30–40 meters)
Category, Item, Parameters or Configuration Vehicle Specifications Product Model KLF5040TDYB6 Dimensions [Length × Width × Height (mm)] 5995*2050, 2250, 2275*2820, 2620, 2420 Curb Weight (kg) 3800/4000 Rated Payload (kg) 300/500 Maximum Gross Weight (kg) 4495 Rated
