Item | Parameter | Remark |
Vehicle Model | KLF5070GPSE6 | |
Wheelbase (mm) | 3308 | |
Engine Model | CA4DB1-11E6 / D20TCIF1 / Q28-130E60 / YCY24140-60 | China VI Emission, Diesel Engine |
Engine Power (kW) | 81 / 93 / 96 / 103 | |
Overall Dimensions [L×W×H (mm)] | 6500,6485×2070×2680,2930 | |
Curb Weight (kg) | 3710, 3895 | |
Max. Gross Weight (kg) | 7360 | |
Working Speed (km/h) | Engine Speed 1500r/min | Stationary Neutral Operation |
Effective Tank Volume (m³) | 5.2 | |
Tank Material | Wugang High-quality Carbon Steel (4mm) | |
Front Flushing Width | 15-30M | |
Rear Water Cannon | Spray 30-35M, 360° Adjustable | |
Special Water Pump | High-power Pump, Vertical Suction 6M | |
Standard Functions | Front Flush, Rear Spray, Side Spray, S-type Cannon, Fire Interface |

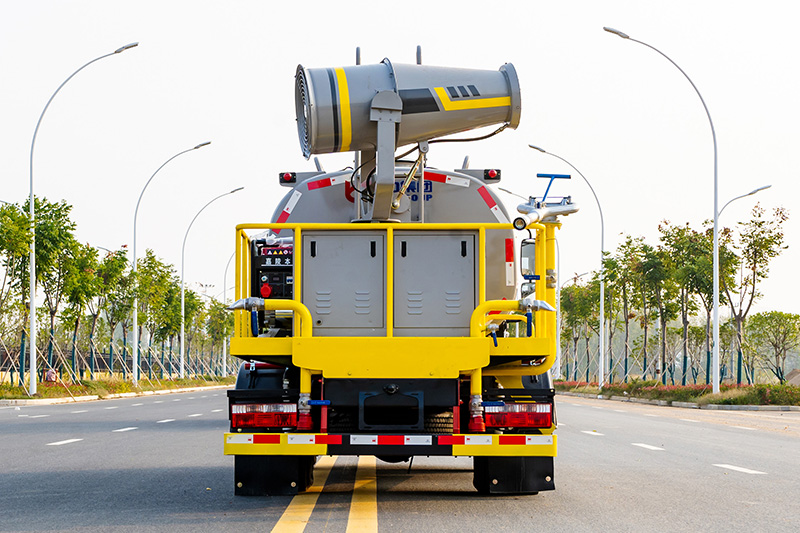

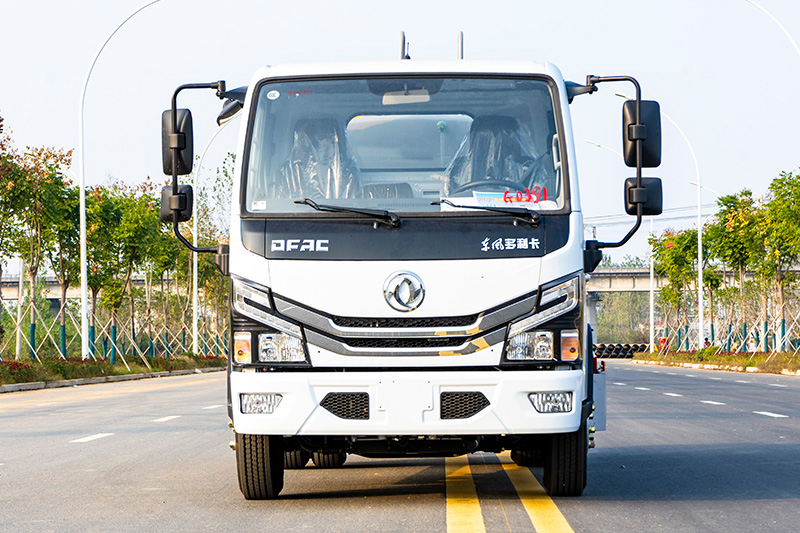

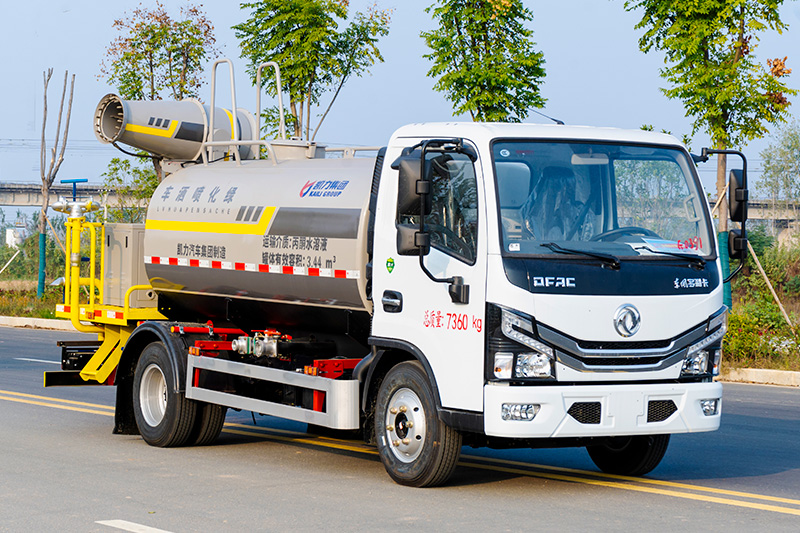

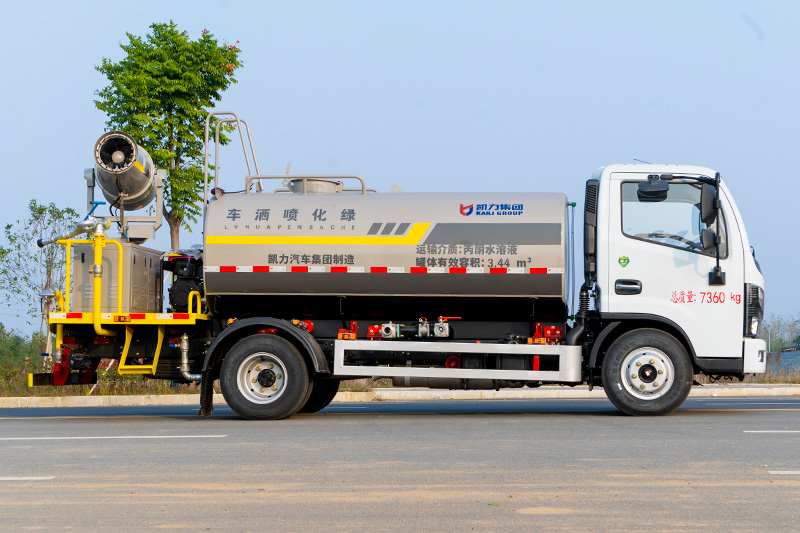

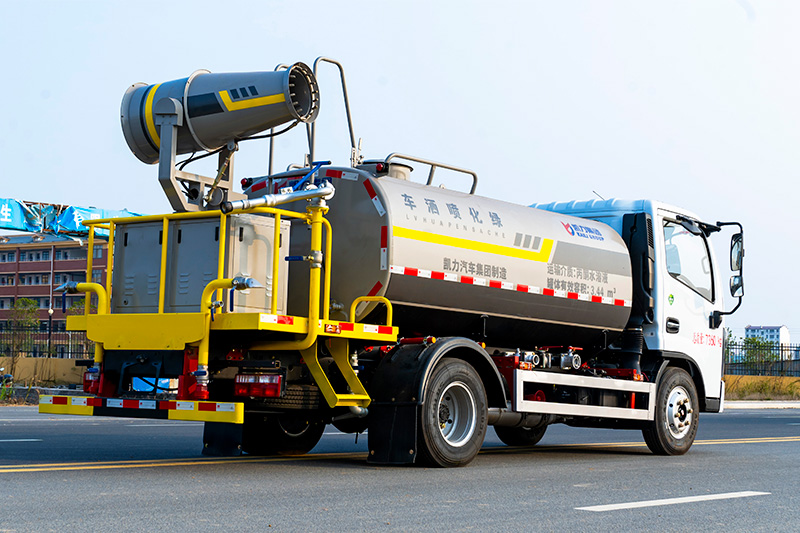

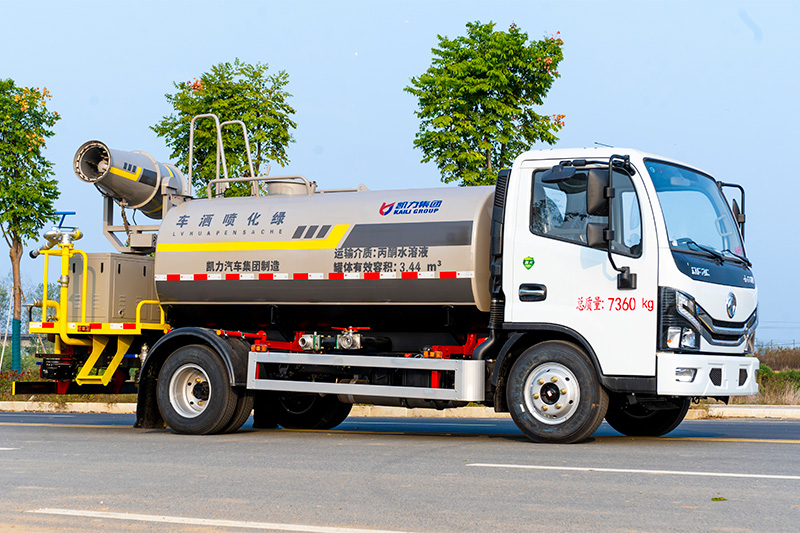

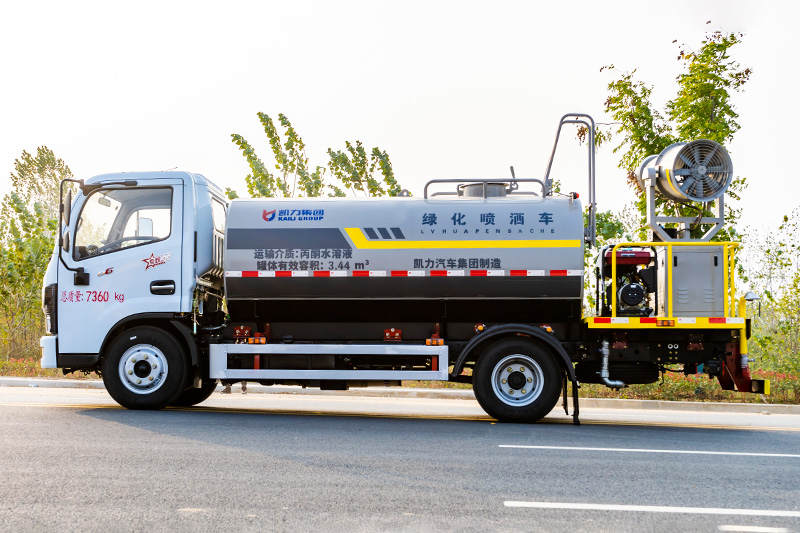

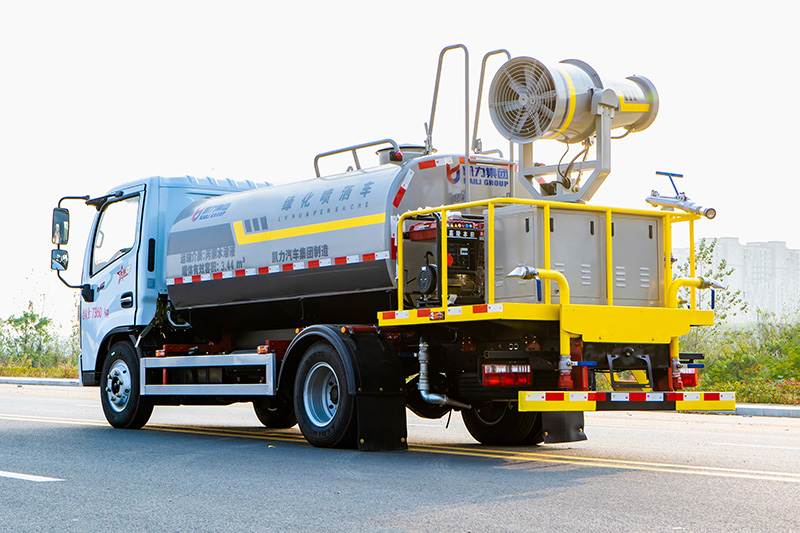

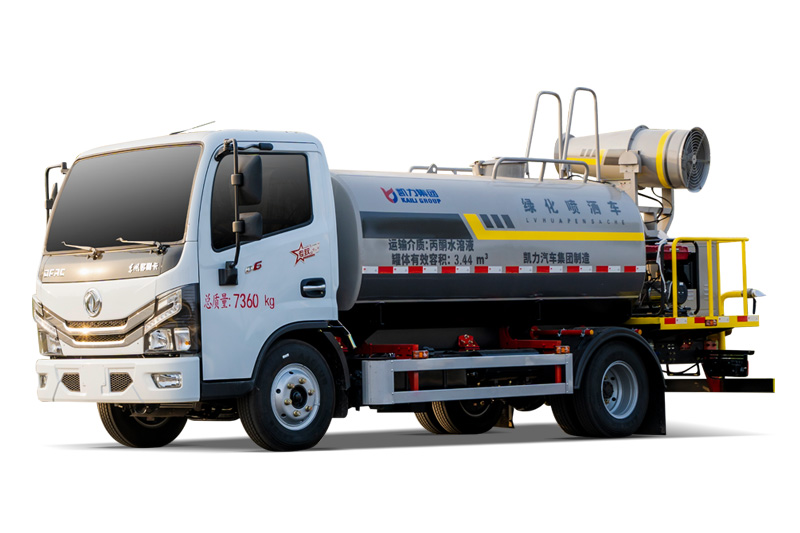

Dongfeng Xiaodolika Fog Cannon Truck, 5.2 cubic meters
Project Parameters Notes Vehicle Model KLF5070GPSE6 Wheelbase (mm) 3308 Engine Model CA4DB1-11E6/D20TCIF1/Q28-1 30E60/YCY24140-60 China VI emissions, Diesel Engine Engine Power (kW) 81/93/96/103 Dimensions [Length × Width × Height (mm)]
